ARRI Signature Zooms
Zoom - Spherical - Full Frame LF/VV
product details

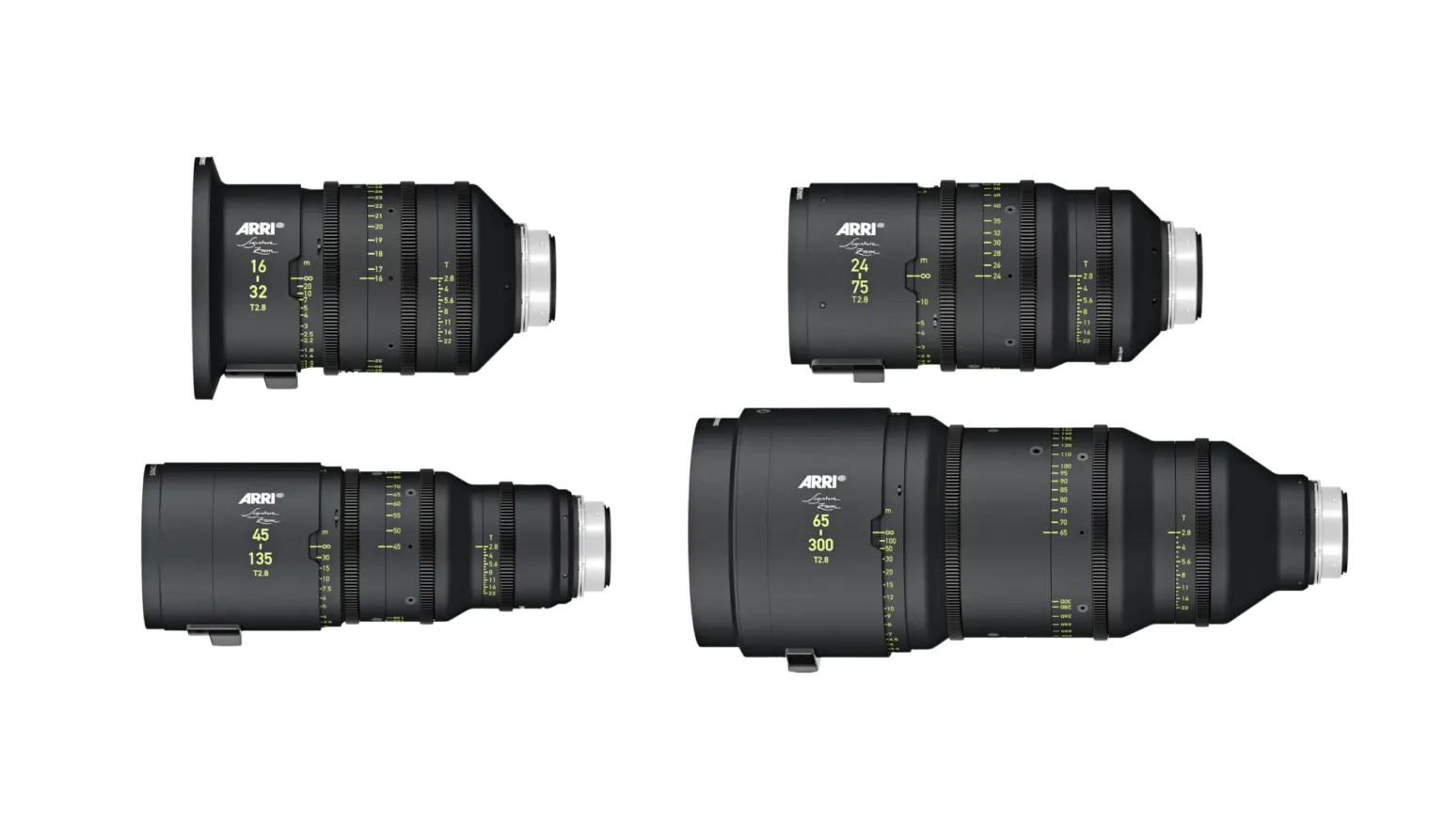

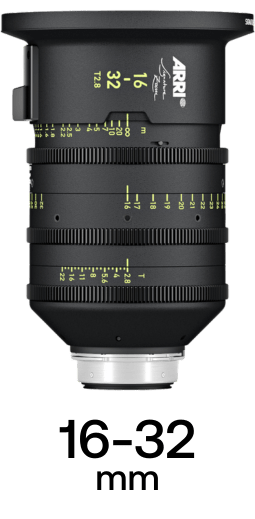

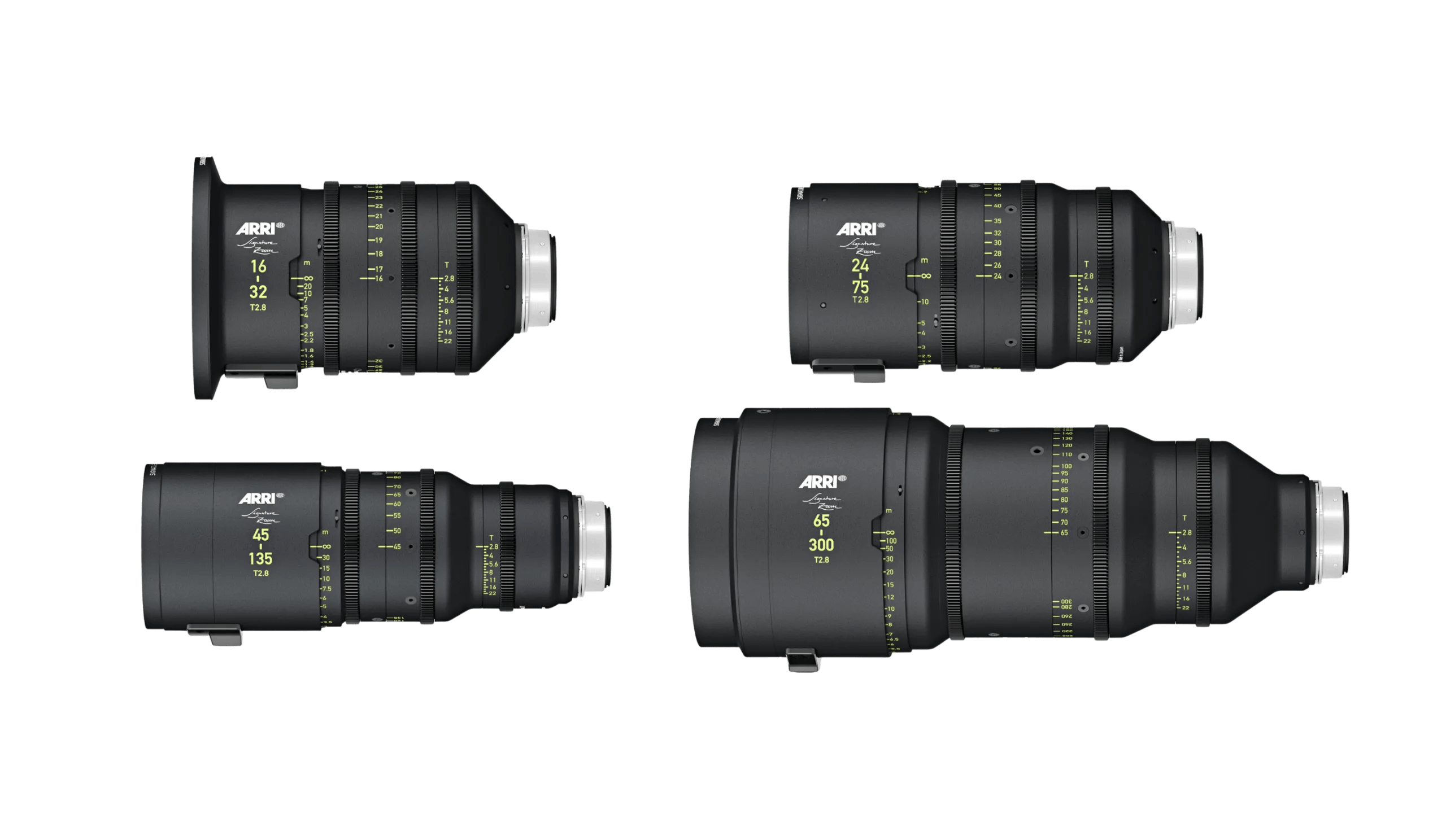

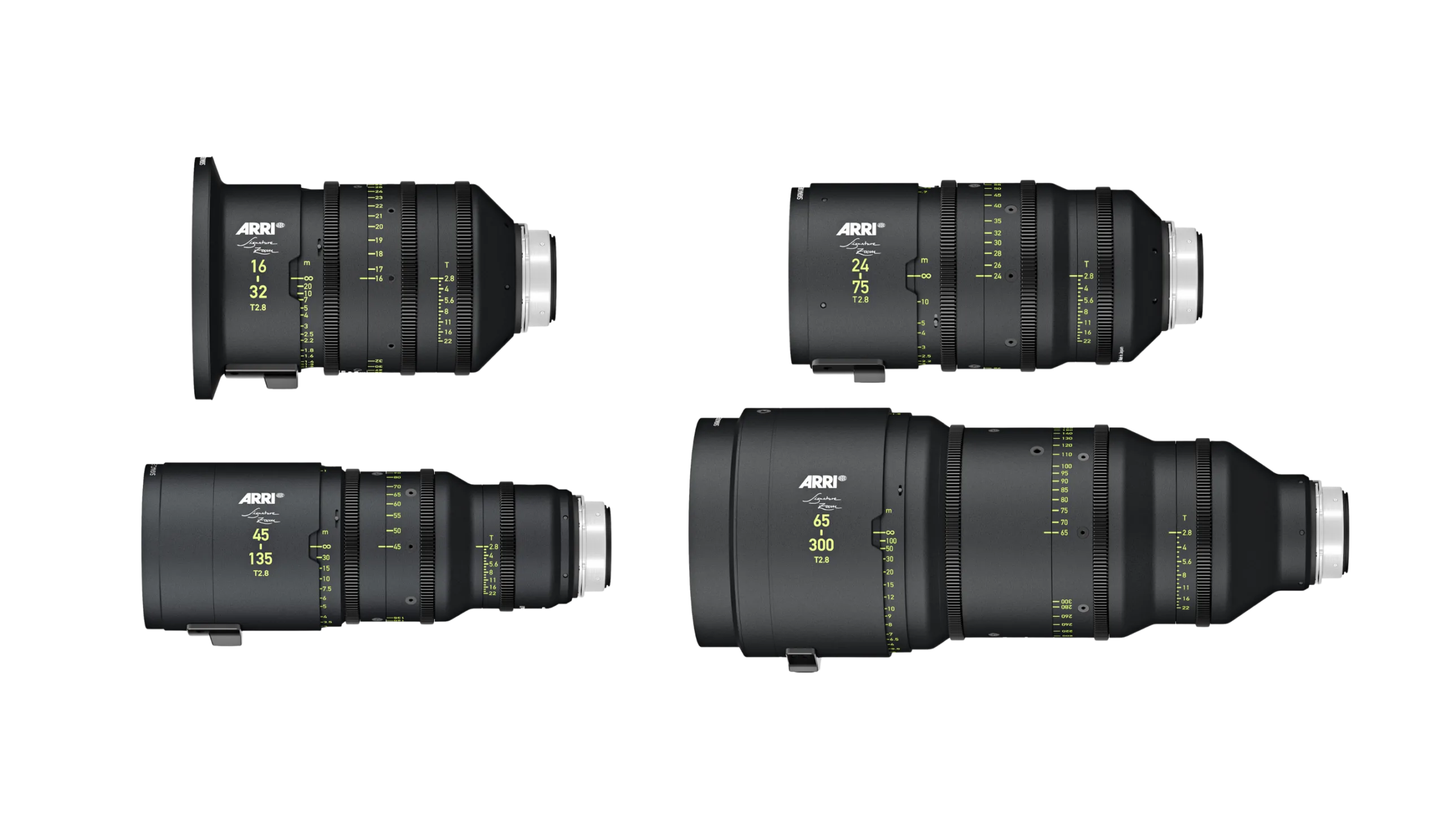

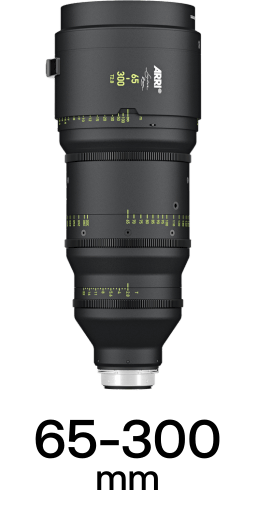

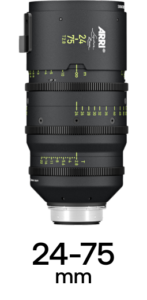

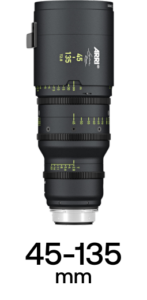

ARRI Signature Zooms are premium large format cinema lenses designed to match the optical and aesthetic qualities of ARRI Signature Primes, rendering natural and beautiful images. Together, the Signature lines range from 12mm to 510mm (with a 1.7x extender) โ ARRI calls it the largest range in history. Focal ranges are 16-32mm, 24-75mm, 45-135mm and 65-300mm. Signature Zooms give cinematographers a cinematic, prime-like image quality with the flexibility to adapt quickly to changing shot requirements. Available for rental or sub-rental at Cine Visuals.
| Set Includes |
(4 Lenses) |
| Type | - |
| Format | - |
| Lens Mount | - |
| Iris Blades | - |
| Metadata | - |
| Era / Generation | |
| Contrast & Tonal Character | |
| Sharpness & Resolution | |
| Focus Fall-Off / Transition | |
| Iris & Bokeh Quality | |
| Flare & Highlight Behavior | |
| Handling & Ergonomics | |
| Build & Modifications | |
| Cinematic Heritage & Credits |
*Refer to the Technical Specifications table
Lens Type:
Zoom Cinema Lenses
|
Full Frame Cinema Lenses
|
PL Mount Cinema Lenses
Matching Items
Blogs
About the ARRI Signature Zoom Cinema Lenses
The ARRI Signature Zooms are a large-format cinema zoom series designed to match the optical performance and visual character of the ARRI Signature Primes while adding the flexibility of variable focal lengths. Built for full-frame and large-format capture, they deliver a clean, natural image with consistent color, contrast, and rendering across the zoom range.
Signature Zooms are known for their ability to maintain sharpness, smooth focus falloff, and minimal breathing throughout the entire focal range, producing a stable, cinematic image that integrates seamlessly with Signature Prime workflows. Their optical design preserves gentle, lifelike skin tones and soft, rounded bokeh, while controlled flare and low aberration ensure a refined look in a variety of lighting conditions. With lightweight housings, LPL mount compatibility, and a focal range that spans from wide to long telephoto, they provide a highly versatile solution for productions that require both visual consistency and on-set efficiency.
ย
ย
Image Fidelity & Focus
With fast maximum apertures of T2.8 across most of the range, they deliver exceptional sharpness, smooth focus roll-off, minimal breathing, and a warm, natural color rendition that complements the Signature Prime look.
Handling & Adaptability
Magnesium housings keep weight low for a zoom โ making ARRI Signature Zooms well-suited for handheld, gimbal, and Steadicam work โ while maintaining robust, precise mechanics for demanding production environments.
Flare & Bokeh
Beautifully rounded bokeh, described as silky smooth and exceptionally soft, is achieved through precision optics and innovative coatings, which also control flare.
Image Circle
All four ARRI Signature Zooms are designed to be compatible with current and future formats, including any large format, full frame or Super 35 camera using the LPL mount.
Cinematic Heritage
ARRI Signature Zooms were introduced in September 2020, and designed with the goal of matching ARRI Signature Primes from the outset.
Technical Specs Table
T-Stop
Type
Format
Front Diameter
Lens Mount
Metadata
Close Focus (ft)
Close Focus (m)
Weight (lbs)
Weight (kg)
Length (in)
Length (mm)
Iris Blades
Image Circle
Front Filter
Rear Filter
Horizontal Angle of View (Full Frame)
Horizontal Angle of View (S35)
Focus Rotation
T2.8
Spherical
Full Frame LF/VV
156 mm
LPL
/i, LDS
1'6"
0.46 m
7.00 lbs
3.18 kg
8.40"
213.36 mm
11
46 mm
โ
Magnetic Rear Net Holder
โ
โ
โ
T2.8
Spherical
Full Frame LF/VV
114 mm
LPL
/i, LDS
2'6"
0.76 m
8.30 lbs
3.77 kg
9.60"
243.84 mm
11
46 mm
โ
Magnetic Rear Net Holder
โ
โ
โ
T2.8
Spherical
Full Frame LF/VV
114 mm
LPL
/i, LDS
3'4"
1.02 m
8.30 lbs
3.77 kg
11.80"
299.72 mm
11
46 mm
โ
Magnetic Rear Net Holder
โ
โ
โ
T2.8
Spherical
Full Frame LF/VV
156 mm
LPL
/i, LDS
6'
1.83 m
17.00 lbs
7.71 kg
16.50"
419.10 mm
11
46 mm
โ
Magnetic Rear Net Holder
โ
โ
โ
