AngΓ©nieux Optimo Ultra Compact Zooms
Zoom - Spherical - FF / U35
product details
The AngΓ©nieux Optimo Ultra Compact Zooms redefine cinema zooms for modern large-format workflows. These lenses were developed from the ground up rather than as simple upscales, with newer optical and mechanical design technology to meet the demands of full-frame/VistaVision workflows. Two zoom ranges β 21-56mm T2.9 (Wide) and 37-102mm T2.9 (Standard) in full frame mode and 16-42mm T2.2 and 28-76mm T2.2 in Ultra 35/Super 35 mode β deliver flexible coverage, iconic AngΓ©nieux image quality, and rugged yet compact ergonomics. Both operate with an effective zoom ratio of 2.7X. Available for rental or sub-rental at Cine Visuals.
| Set Includes |
21-56mm, 16-42mm, 37-102mm, 28-76mm (4 Zooms)
|
| Type | - |
| Format | - |
| Lens Mount | - |
| Iris Blades | - |
| Metadata | - |
| Per Focal Length | |
| Focal Length | - |
| T-Stop | - |
| Close Focus | - |
| Front Diameter | - |
| Weight | - |
| Length | - |
| Era / Generation | |
| Contrast & Tonal Character | |
| Sharpness & Resolution | |
| Focus Fall-Off / Transition | |
| Iris & Bokeh Quality | |
| Flare & Highlight Behavior | |
| Handling & Ergonomics | |
| Build & Modifications | |
| Cinematic Heritage & Credits |
*Refer to the Technical Specifications table
Lens Type:
Zoom Cinema Lenses
|
Full Frame Cinema Lenses
|
PL Mount Cinema Lenses
Blogs
About the AngΓ©nieux Optimo Ultra Compact Zoom Cinema Lenses
The AngΓ©nieux Optimo Ultra Compact Zooms are a modern cinema zoom system designed for large format production while maintaining a compact and lightweight form factor. Developed specifically for full frame and VistaVision workflows, they deliver consistent sharpness, natural color reproduction, and balanced contrast across the zoom range, preserving the classic AngΓ©nieux look without feeling overly clinical.
A key advantage of the Ultra Compact series is its dual format capability. With interchangeable rear optics, the lenses can switch between full frame and Super 35 configurations while maintaining consistent image character. Combined with minimal breathing, smooth focus transitions, and compact ergonomics, they are well suited for handheld, gimbal, and fast moving productions that require both flexibility and reliable performance.
Β
Β
Image Fidelity & Focus
These lenses exhibit beautifully balanced, moderate contrast and clean resolution, often described as the classic AngΓ©nieux look. They show excellent image fidelity, with uniform sharpness and color across focal lengths and focus distances, minimal distortion, and a cinematic aesthetic suitable for narrative storytelling. Thanks to internal zoom/addressing, there's virtually no ramping or breathing, making focus and zoom transitions incredibly smooth. Falloff tends towards a classic spherical look with even coverage.
Handling & Adaptability

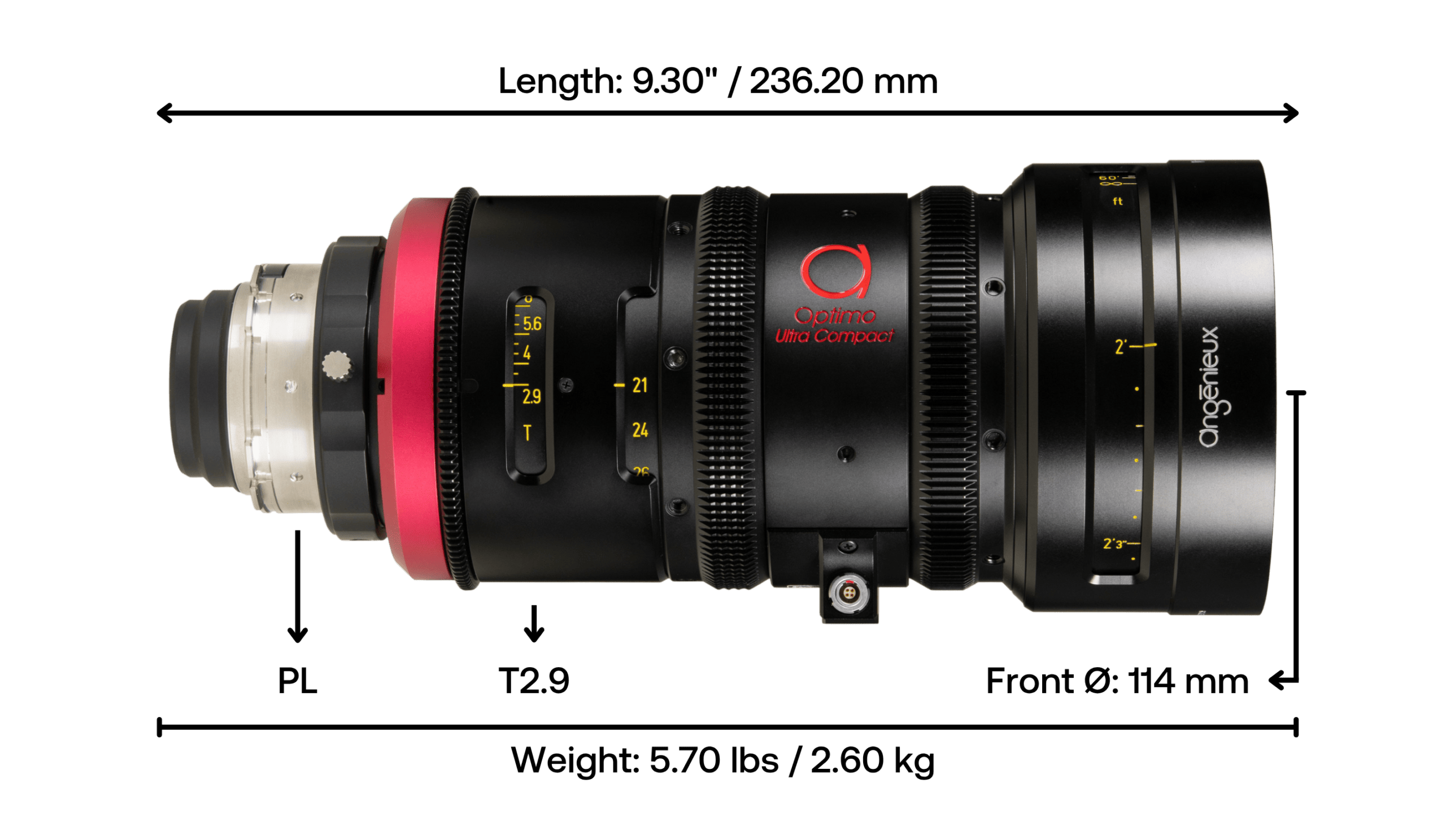

AngΓ©nieux Optimo Ultra Compact Zooms are remarkably compact and lightweight by cinema zoom standards. Both weigh around 2.6 kg and measure roughly 235mm in length, making them perfect for Steadicam or gimbal work. They feature a standardized 114mm front diameter for efficient matte box, filter, and follow-focus integrations. Precision mechanics include a generous 310Β° focus rotation, rugged zoom/focus rods, and user-swappable focus scales. Cooke /i metadata is supported.
Flare & Bokeh
Flaring and chromatic aberration are well-controlled through modern optical coatings and design. Bokeh benefits from the T2.9 aperture, delivering a nice separation of subject with pleasant background compression.
Image Circle
IRO (Interchangeable Rear Optics) technology facilitates quick swaps between full-frame/VistaVision coverage (46.3mm image circle) and Ultra 35/Super 35 formats (34.6mm image circle). This modular flexibility across platforms makes multiple sets of lenses unnecessary.
Cinematic Heritage
Introduced in 2021, these lenses are the successors to AngΓ©nieuxβs award-winning Optimo lightweight zooms (15-40mm and 28-76mm), which were popular from the mid-2000s.
Technical Specs Table
T-Stop
Type
Format
Front Diameter
Lens Mount
Metadata
Close Focus (ft)
Close Focus (m)
Weight (lbs)
Weight (kg)
Length (in)
Length (mm)
Iris Blades
Image Circle
Front Filter
Rear Filter
Horizontal Angle of View (Full Frame)
Horizontal Angle of View (S35)
Focus Rotation
T2.9
Spherical
Full Frame LF/VV
114 mm
PL
/i
2'
0.60 m
5.70 lbs
2.60 kg
9.72"
247.00 mm
β
46.3 mm
β
β
87.5Β° - 40.2Β°
β
310Β°
T2.2
Spherical
Ultra 35
114 mm
PL
/i
2'
0.60 m
5.70 lbs
2.60 kg
9.72"
247.00 mm
β
34.6 mm
β
β
β
β
310Β°
T2.9
Spherical
Full Frame LF/VV
114 mm
PL
/i
2'
0.60 m
5.51 lbs
2.50 kg
9.25"
235.00 mm
β
46.3 mm
β
β
57.3Β° - 22.7Β°
β
310Β°
T2.2
Spherical
Ultra 35
114 mm
PL
/i
2'
0.60 m
5.51 lbs
2.50 kg
9.25"
235.00 mm
β
34.6 mm
β
β
β
β
310Β°
