ARRI Signature Zooms

1 / 4

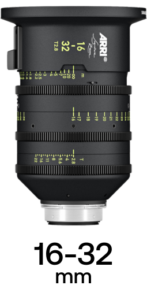

ARRI Signature Zoom 16-32mm T2.8

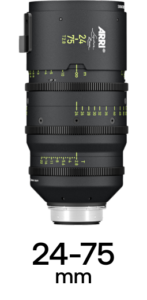

ARRI Signature Zoom 24-75mm T2.8

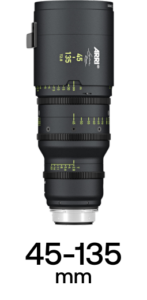

ARRI Signature Zoom 45-135mm T2.8
ARRI Signature Zoom 65-300mm T2.8

Matching Items

ARRI Signature Primes

Full Frame LF/VV | Spherical

ARRI Signature Zooms

Zoom - Spherical - Full Frame LF/VV

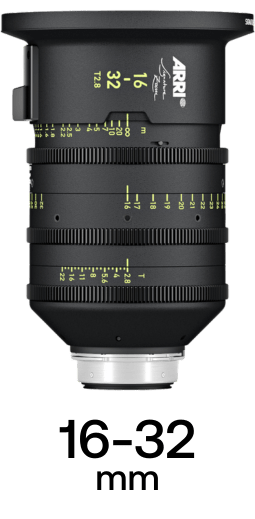

16-32mm
24-75mm
45-135mm

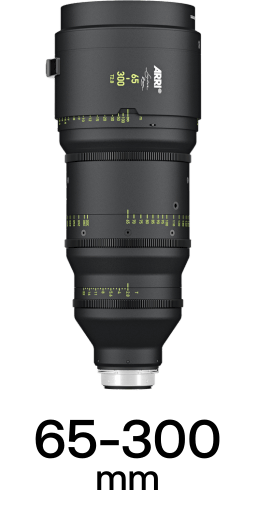

65-300mm

product details

ARRI Signature Zooms are premium large format cinema lenses designed to match the optical and aesthetic qualities of ARRI Signature Primes, rendering natural and beautiful images. Together, the Signature lines range from 12mm to 510mm (with a 1.7x extender) – ARRI calls it the largest range in history. Focal ranges are 16-32mm, 24-75mm, 45-135mm and 65-300mm. Signature Zooms give cinematographers a cinematic, prime-like image quality with the flexibility to adapt quickly to changing shot requirements. Available for rental or sub-rental at Cine Visuals.

Focal Length
T-Stop
Type
Format
Front Diameter
Lens Mount
Metadata
Iris Blades
Image Circle

Era / Generation
Contrast & Tonal Character
Sharpness & Resolution
Focus Fall‑Off / Transition
Iris & Bokeh Quality
Flare & Highlight Behavior
Handling & Ergonomics
Build & Modifications
Cinematic Heritage & Credits

*Refer to Technical Specifications table. Not the same for all focal lengths.

Matching Items

ARRI Signature Primes

Full Frame LF/VV | Spherical

SHOTS TAKEN FROM

Technical Specs Table

T-Stop

Type

Format

Front Diameter

Lens Mount

Metadata

Close Focus (ft)

Close Focus (m)

Weight (lbs)

Weight (kg)

Length (in)

Length (mm)

Iris Blades

Image Circle

Front Filter

Rear Filter

Horizontal Angle of View (Full Frame)

Horizontal Angle of View (S35)

Focus Rotation

T2.8

Spherical

Full Frame LF/VV

156 mm

LPL

/i, LDS

1'6"

0.46 m

7.00 lbs

3.18 kg

8.40"

213.36 mm

46 mm

–

Magnetic Rear Net Holder

–

T2.8

Spherical

Full Frame LF/VV

114 mm

LPL

/i, LDS

2'6"

0.76 m

8.30 lbs

3.77 kg

9.60"

243.84 mm

46 mm

–

Magnetic Rear Net Holder

–

T2.8

Spherical

Full Frame LF/VV

114 mm

LPL

/i, LDS

3'4"

1.02 m

8.30 lbs

3.77 kg

11.80"

299.72 mm

46 mm

–

Magnetic Rear Net Holder

–

T2.8

Spherical

Full Frame LF/VV

156 mm

LPL

/i, LDS

1.83 m

17.00 lbs

7.71 kg

16.50"

419.10 mm

46 mm

–

Magnetic Rear Net Holder

–

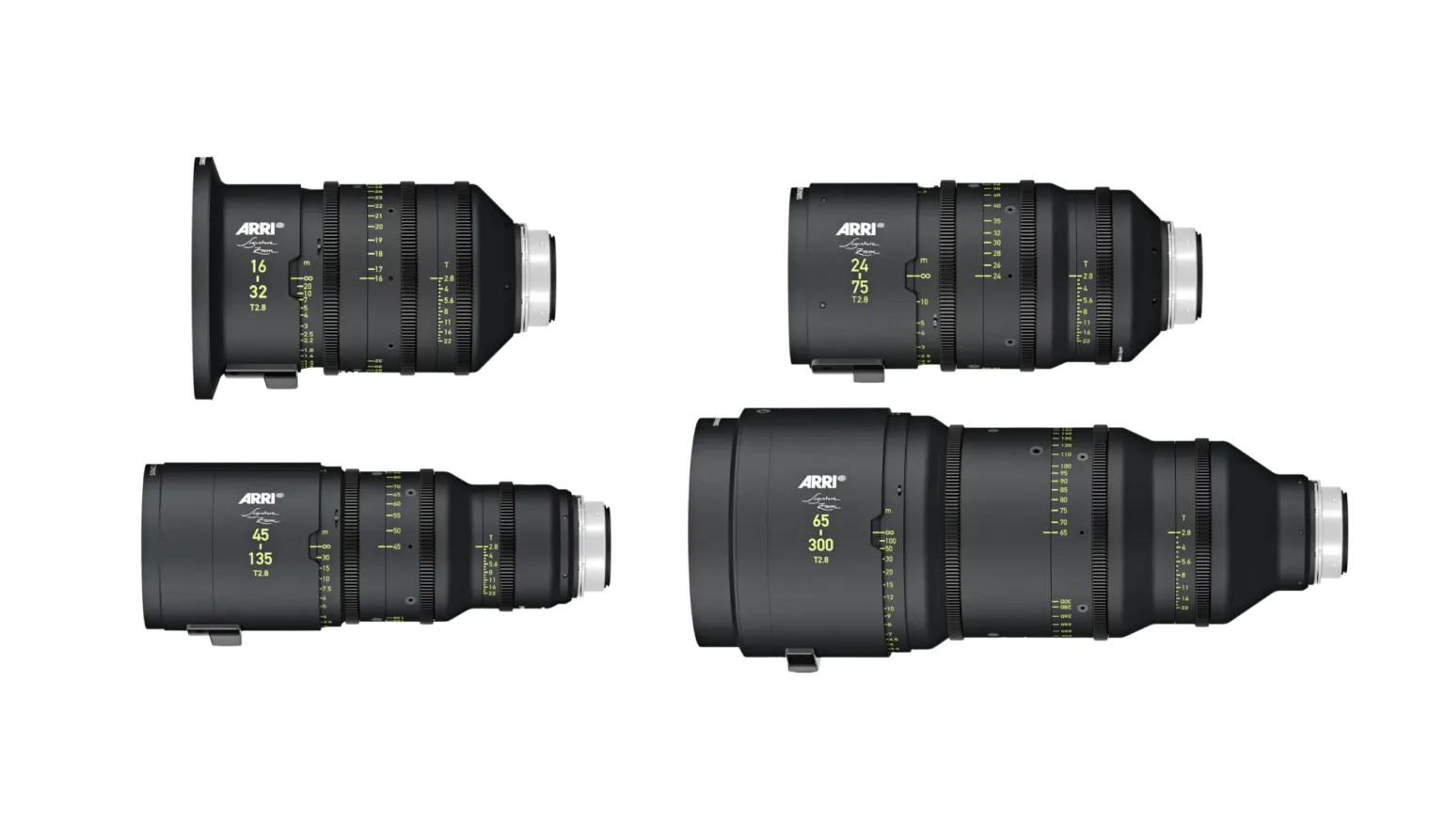

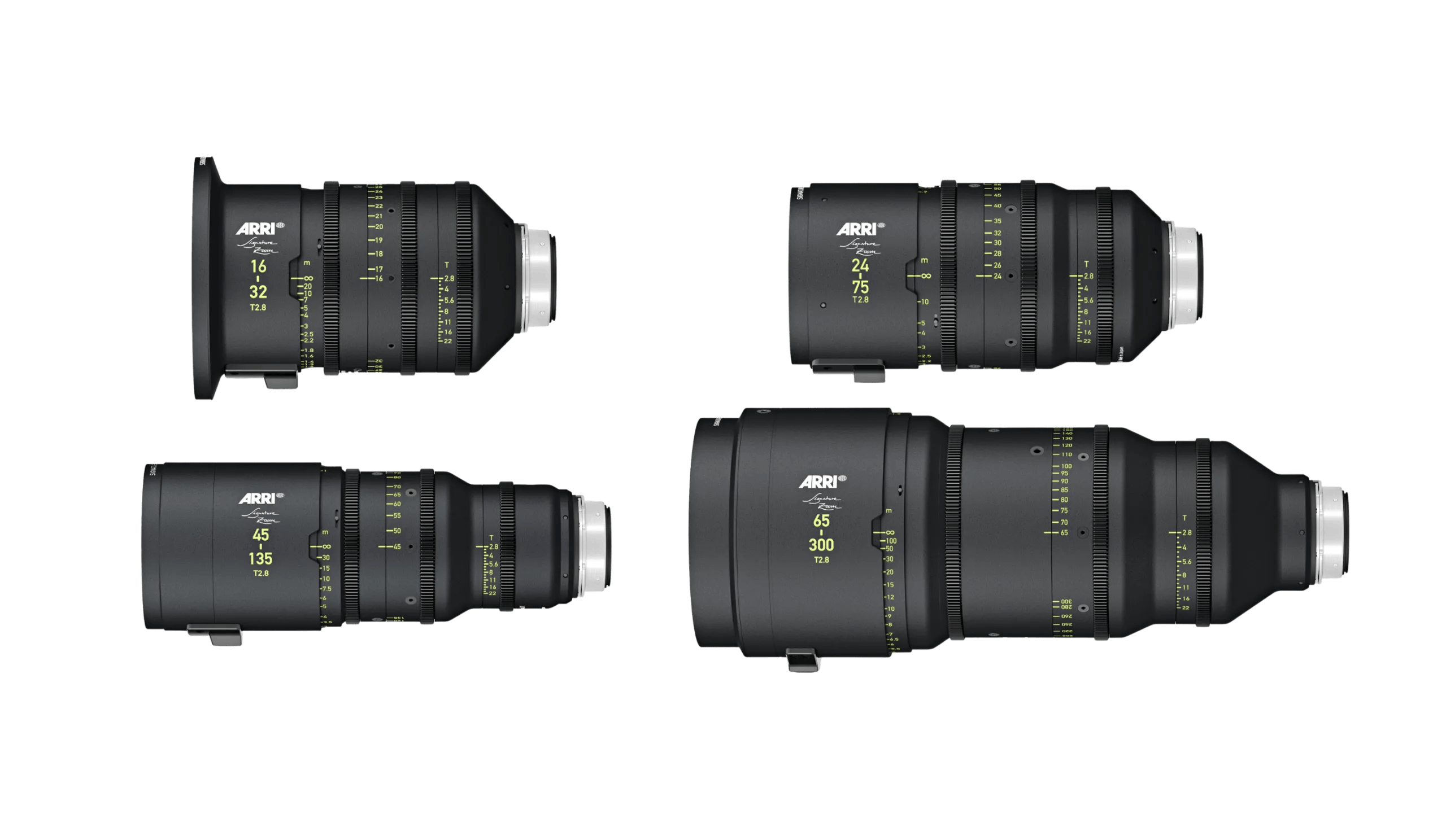

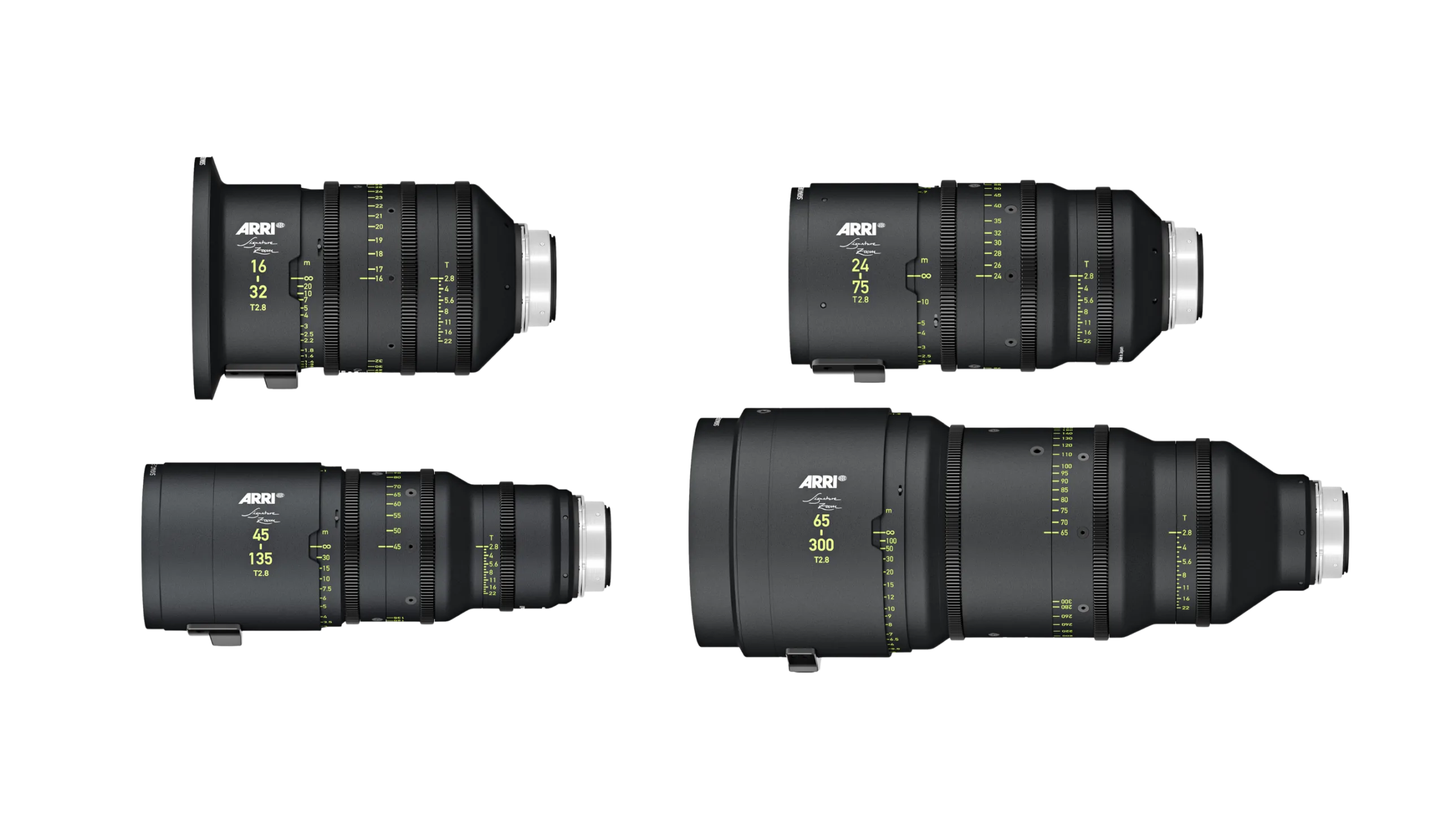

ARRI Signature Zooms

Image Fidelity & Focus

With fast maximum apertures of T2.8 across most of the range, they deliver exceptional sharpness, smooth focus roll-off, minimal breathing, and a warm, natural color rendition that complements the Signature Prime look.

Handling & Adaptability

Magnesium housings keep weight low for a zoom – making ARRI Signature Zooms well-suited for handheld, gimbal, and Steadicam work – while maintaining robust, precise mechanics for demanding production environments.

Flare & Bokeh

Beautifully rounded bokeh, described as silky smooth and exceptionally soft, is achieved through precision optics and innovative coatings, which also control flare.

Image Circle

All four ARRI Signature Zooms are designed to be compatible with current and future formats, including any large format, full frame or Super 35 camera using the LPL mount.

Cinematic Heritage

ARRI Signature Zooms were introduced in September 2020, and designed with the goal of matching ARRI Signature Primes from the outset.
