DZO X-Tract Probe

DZO_X_Track_Probes_18-28-0_22_08_2025-1-scaled

1 / 3

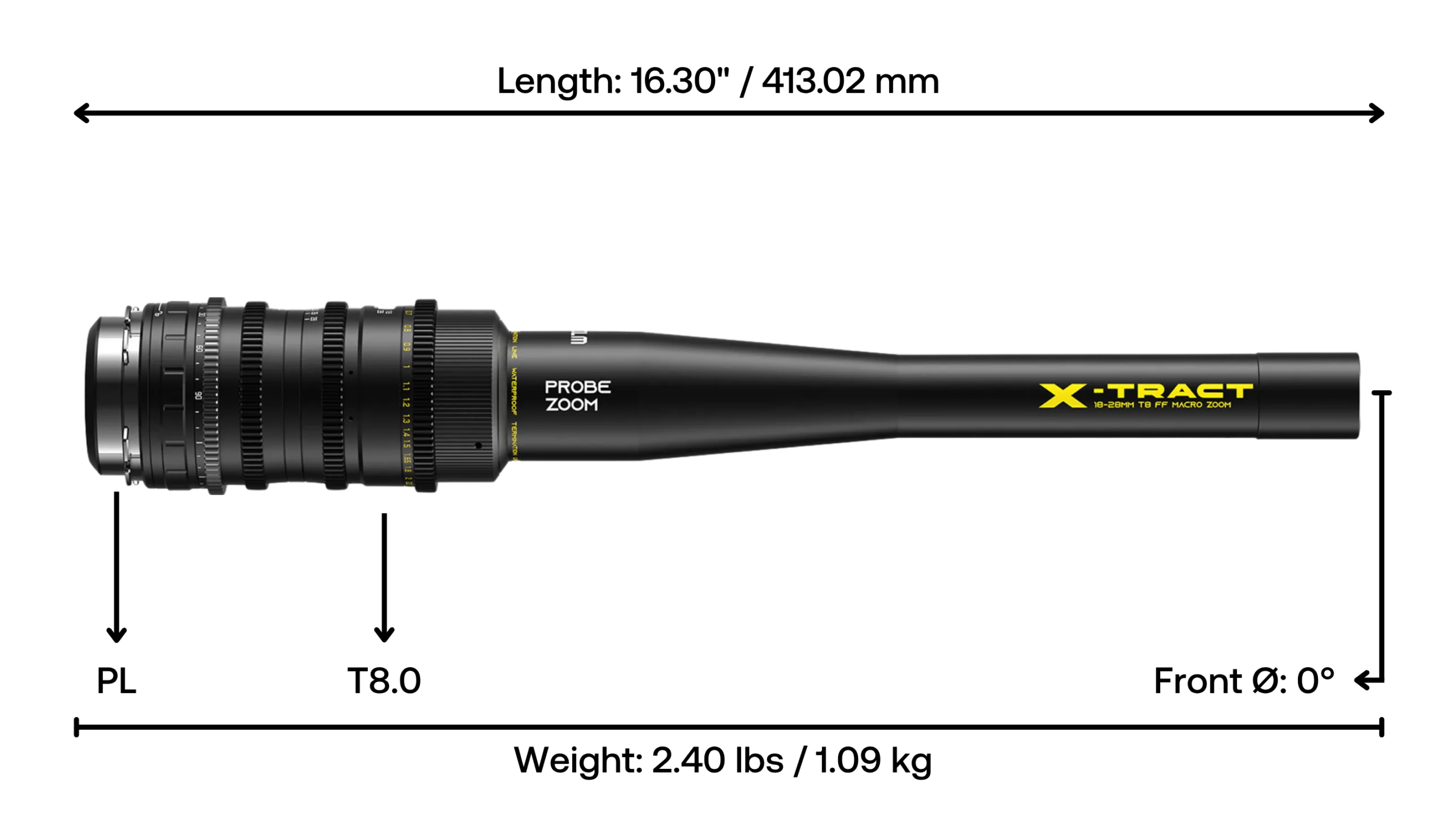

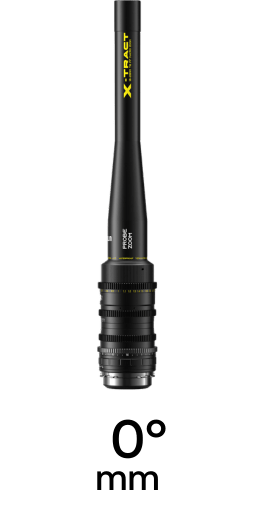

DZO X-TRACT 18–28mm T8.0 0°

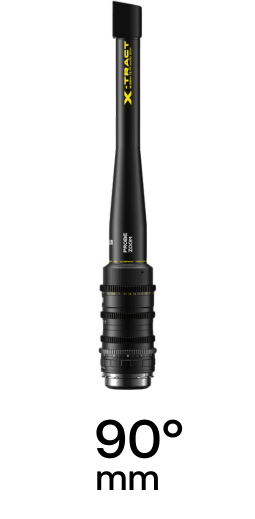

DZO X-Tract 18–28mm T8.0 90°
DZO X-Tract 18–28mm T8.0 360°

Matching Items

DZO X-Tract Probe

Zoom - Spherical - Full Frame

18-28mm
18-28mm
18-28mm

product details

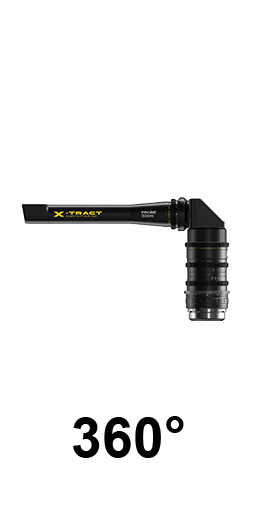

The DZOFilm X-Tract Macro Zoom redefines macro cinematography. It is a groundbreaking lens merging macro-level detail, wide-angle zoom control, and durable design in an ergonomic package. Slender design allows easy access to narrow, hidden spaces, where it can capture microscope details. Optical fidelity, smooth mechanics, and adaptability make it a powerful tool for cinematographers exploring new visual frontiers. The X-Tract does not come in a set of multiple focal lengths; instead, it offers a versatile 18mm to 28mm parfocal zoom with a constant aperture of T8, providing smooth zooming without losing focus. Three variants are available: the 0° direct-view model, a 90° periscope version, and a fully articulated 360° periscope, each enabling creative angles in constrained spaces. Available for rental or sub-rental at Cine Visuals.

Focal Length
T-Stop
Type
Format
Front Diameter
Lens Mount
Metadata
Iris Blades
Image Circle

Era / Generation
Contrast & Tonal Character
Sharpness & Resolution
Focus Fall‑Off / Transition
Iris & Bokeh Quality
Flare & Highlight Behavior
Handling & Ergonomics
Build & Modifications
Cinematic Heritage & Credits

*Refer to Technical Specifications table. Not the same for all focal lengths.

Matching Items

SHOTS TAKEN FROM

Technical Specs Table

T-Stop

Type

Format

Front Diameter

Lens Mount

Metadata

Close Focus (ft)

Close Focus (m)

Weight (lbs)

Weight (kg)

Length (in)

Length (mm)

Iris Blades

Image Circle

Front Filter

Rear Filter

Horizontal Angle of View (Full Frame)

Horizontal Angle of View (S35)

Focus Rotation

T8.0

Spherical

Full Frame LF/VV

–

0.24"

0.006 m

2.40 lbs

1.09 kg

16.30"

413.02 mm

43.2 mm

–

300°

T8.0

Spherical

Full Frame LF/VV

–

0.24"

0.006 m

2.49 lbs

1.13 kg

16.57"

421.00 mm

43.2 mm

–

300°

T8.0

Spherical

Full Frame LF/VV

–

0.24"

0.006 m

2.52 lbs

1.14 kg

11.89"

302.00 mm

43.2 mm

–

300°

DZO X-Tract Probe

Image Fidelity & Focus

Built with 25 elements in 18 groups, including 7 HRI (high-refractive-index) and 6 ED (extra-low dispersion) elements, DZOFilm X-Tract Macro Zoom delivers exceptional sharpness and color correction, minimizing chromatic aberration and warm tint common in probe lenses. Distortion is kept within ±2% across the zoom range, with focus breathing at 24mm. Focus breathing is impressively low – 0.5% at 24mm, compared to about 39% in comparable lenses. Parfocal design and 300° focus throw enable smooth, precise focus changes even when zooming.

Handling & Adaptability

The lens weighs roughly 1.08 to 1.14 kg and measures 41.5 cm (16.3 in) in length. A narrow front diameter (under 30mm) is ideal for probing tight environments. The rear-heavy design balances well on rigs, stabilizers, and motion control systems. Mounted natively in ARRI PL, the short rear protrusion (approximately 1.37 cm) supports adaptability via Speedboosters and mounts like LPL, RF, or E. Designed for seamless integration with cine accessories.

Flare & Bokeh

Advanced coatings and optical element selection work together to reduce flare and maintain crisp image fidelity. Aberrations are controlled robustly thanks to ED and HRI optics. Although T8 isn’t typically associated with shallow-depth-of-field imagery, this lens still offers softly rendered out-of-focus areas – especially at 28mm – thanks to its optical design and diaphragm with 10 iris blades.

Image Circle

With an image circle of approximately 43.2mm, the X-Tract Macro Zoom is compatible with full-frame sensors and is adaptable to Super 35 formats.

Cinematic Heritage

The probe niche has grown in popularity, particularly for product, sci-fi, and commercial work, prompting DZO to innovate beyond fixed focal probes. DZOFilm introduced the X-Tract in early 2025 as their first probe zoom lens, aiming to combine macro precision with cinematic flexibility.
