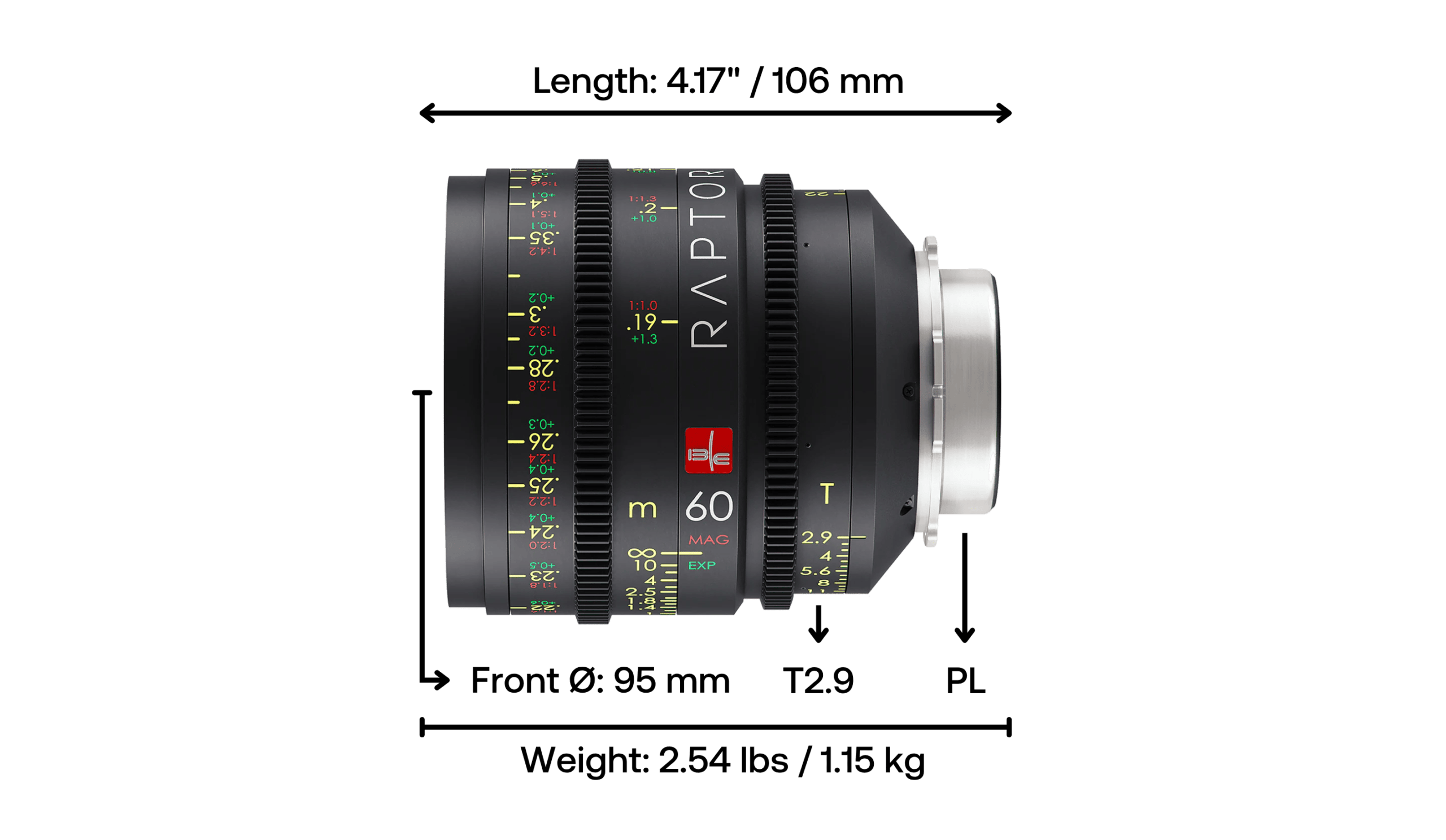

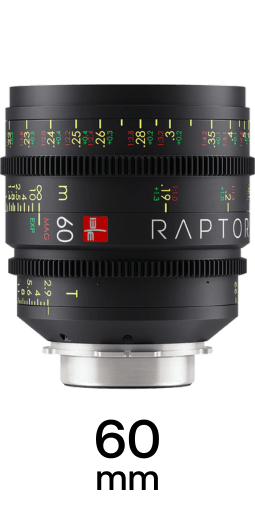

IB/E Raptor APO 60mm T2.9

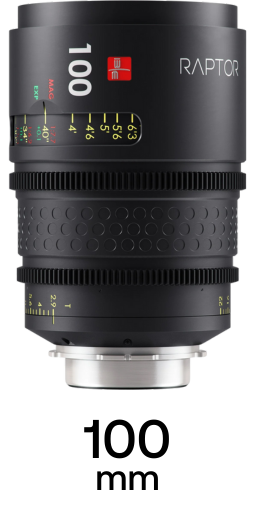

IB/E Raptor APO 100mm T2.9

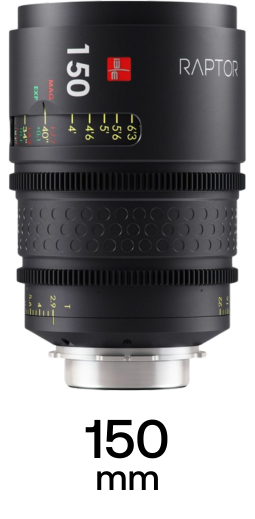

IB/E Raptor APO 150mm T2.9

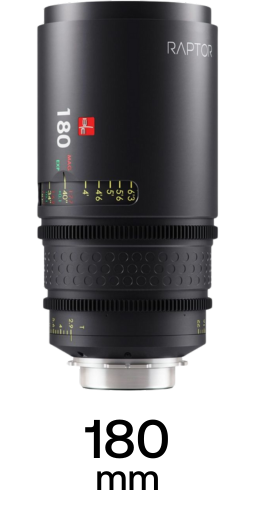

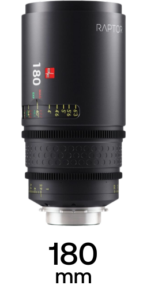

IB/E Raptor APO 180mm T2.9

Matching Items

IB/E Raptor APO

Prime - Spherical - Full Frame

product details

The Raptor Macro Primes (100mm, 150mm, 180mm) are designed specifically to address the trend in the industry towards larger format sensors. Each lens in this series offers full frame coverage (24×36) which means that they are able to cover the entire image sensor of the camera. The lenses have a 1:1 magnification, which allows for capturing images at life-size. They also have a T-stop of 2.9, which means that they allow a lot of light to pass through the lens, allowing for a fast shutter speed or low ISO setting. This makes them suitable for low light conditions. They also have robust and durable professional cine mechanics, which means they are built to withstand the rigors of professional use, and provide reliable and consistent performance. The Raptor Macro lenses are available to rent or sub-rent from Cine Visuals as a full set, partial set, or single lenses.

Focal Length
T-Stop
Type
Format
Front Diameter
Lens Mount
Metadata
Iris Blades
Image Circle

Era / Generation
Contrast & Tonal Character
Sharpness & Resolution
Focus Fall‑Off / Transition
Iris & Bokeh Quality
Flare & Highlight Behavior
Handling & Ergonomics
Build & Modifications
Cinematic Heritage & Credits

*Refer to Technical Specifications table. Not the same for all focal lengths.

Matching Items

Technical Specs Table

T-Stop

Type

Format

Front Diameter

Lens Mount

Metadata

Close Focus (ft)

Close Focus (m)

Weight (lbs)

Weight (kg)

Length (in)

Length (mm)

Iris Blades

Image Circle

Front Filter

Rear Filter

Horizontal Angle of View (Full Frame)

Horizontal Angle of View (S35)

Focus Rotation

T2.9

Spherical

Full Frame

95 mm

–

7.5"

0.19 m

2.54 lbs

1.15 kg

4.17"

106 mm

43.3 mm

–

320°

T2.9

Spherical

Full Frame

95 mm

–

12.3"

0.31 m

3.42 lbs

1.55 kg

5.91"

150 mm

43.3 mm

–

320°

T2.9

Spherical

Full Frame

95 mm

–

15"

0.38 m

3.88 lbs

1.76 kg

5.91"

150 mm

43.3 mm

–

320°

T2.9

Spherical

Full Frame

95 mm

–

18.5"

0.47 m

5.47 lbs

2.48 kg

7.60"

193 mm

43.3 mm

–

320°

Image Performance

Handling & Adaptability

The inclusion of a single aspheric optical element makes it visually compatible with both the multi-aspheric Leica Summilux-C and the spherical Leica Summicron-C primes. With nine lenses in six groups and apochromatic correction, outstanding resolution and contrast can be achieved all the way to the edge of the frame.
