- Canon Rangefinder 19mm T4.0

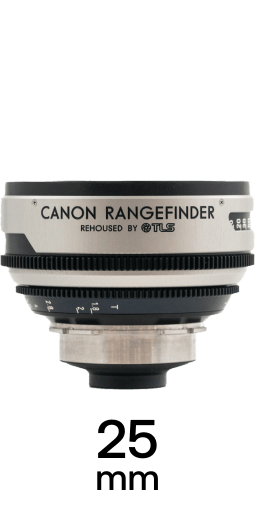

- Canon Rangefinder 25mm T1.8

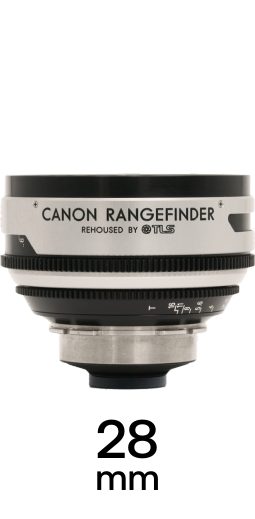

- Canon Rangefinder 28mm T2.1
- Canon Rangefinder 35mm T1.6
- Canon Rangefinder 40mm T1.8
- Canon Rangefinder 50mm T1.1 Dream Lens

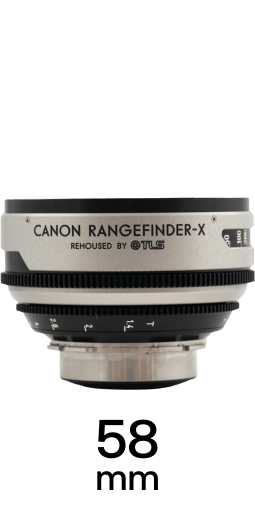

- Canon Rangefinder 58mm T1.4
- Canon Rangefinder 85mm T1.6

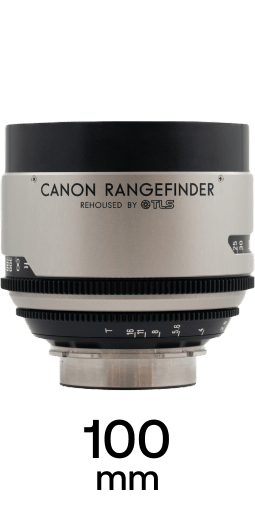

- Canon Rangefinder 100mm T2.1
- Canon Rangefinder 135mm T2.8
TLS Canon Rangefinder
Prime - Spherical - Full Frame
product details
Canon Rangefinder lenses are rehoused still glass originally designed in the 1950s for Canonโs rangefinder cameras, to compete with Leica and Nikon in the post-war still photography market. Today, widely rehoused for cinema use, they offer a uniquely vintage, but not overly degraded look. Their combination of warmth, flare, swirly bokeh, and manageable sharpness gives modern filmmakers an expressive palette that contrasts sharply with the hyper-corrected look of many contemporary cinema primes. Cine Visualsโ Rangefinders have been rehoused by TLS, the industryโs best. A set includes 19mm T4, 25mm T1.8, 28mm T2.1, 35mm T1.6, 40mm T1.8, 50mm T1 (aka the โDream Lensโ), 58mm T1.4, 85mm T1.6, 100mm T2.1, and 135mm T2.8. The 50mm โDream Lensโ is particularly notable for its exceptional optical design, fast T1.1 aperture, and enchanting amber lens flares, and swirly, dramatic bokeh. Full sets, partial sets or single lenses are available for rental or sub-rental from Cine Visuals.

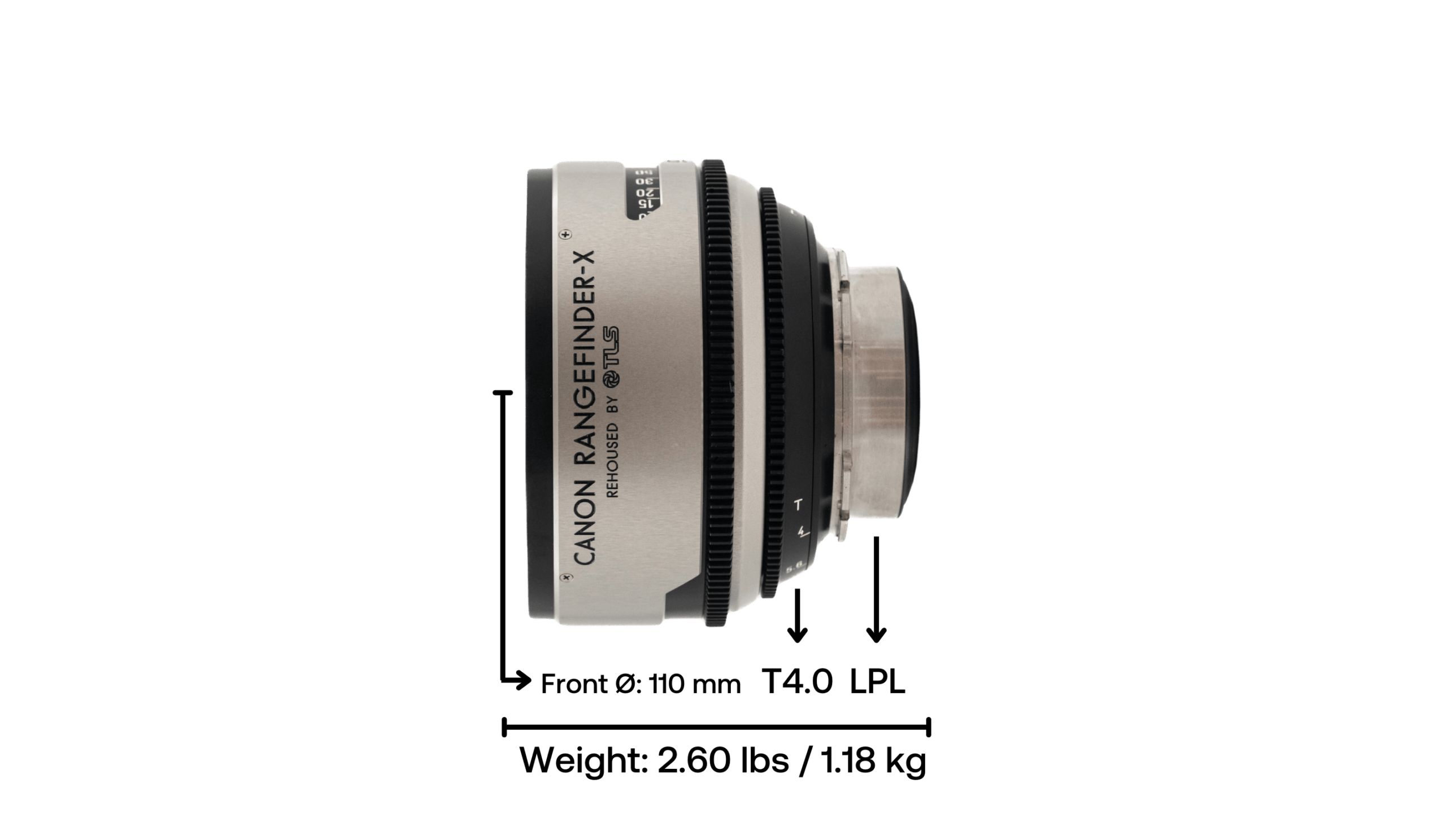

- Canon Rangefinder 19mm T4.0
- Canon Rangefinder 25mm T1.8

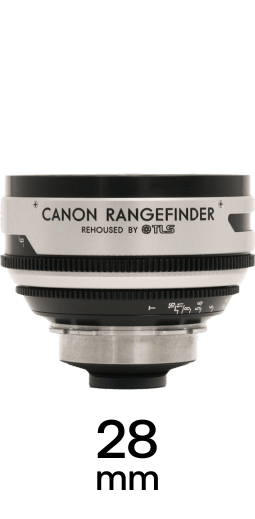

- Canon Rangefinder 28mm T2.1
- Canon Rangefinder 35mm T1.6
- Canon Rangefinder 40mm T1.8

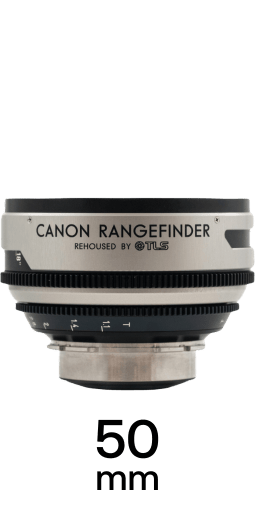

- Canon Rangefinder 50mm T1.1 Dream Lens
- Canon Rangefinder 58mm T1.4

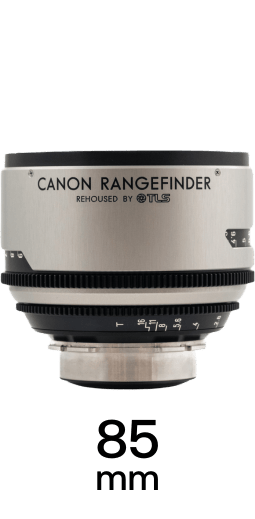

- Canon Rangefinder 85mm T1.6
- Canon Rangefinder 100mm T2.1
- Canon Rangefinder 135mm T2.8
| Set Includes |
19mm โ 135mm (10 Lenses)
|
| Type | - |
| Format | - |
| Lens Mount | - |
| Iris Blades | - |
| Metadata | - |
| Per Focal Length | |
| Focal Length | - |
| T-Stop | - |
| Close Focus | - |
| Front Diameter | - |
| Weight | - |
| Length | - |
| Era / Generation | |
| Contrast & Tonal Character | |
| Sharpness & Resolution | |
| Focus Fall-Off / Transition | |
| Iris & Bokeh Quality | |
| Flare & Highlight Behavior | |
| Handling & Ergonomics | |
| Build & Modifications | |
| Cinematic Heritage & Credits |
*Refer to the Technical Specifications table
Blogs
Image Fidelity & Focus
Canon Rangefinder glass was designed with high-speed apertures, compact forms, and excellent sharpness for its era. Wide open, contrast is gentle, with a pleasing falloff into the edges, giving images a soft yet dimensional rendering. Sharpness is good in the center but rolls off smoothly toward the edges, which modern cinematographers often favor for subject isolation. Stopped down, these lenses sharpen considerably, producing a more neutral, clinical look. Image fidelity leans toward warmer tones, with subtle color shifts tending toward lower contrast and slightly cooler hues.
Flare & Bokeh
The golden 1960โs single-layer coatings add to the distinctly organic skin tones, strong, expressive flares and lowered contrast when pointed at light sources. Chromatic aberration is present wide open, particularly in the fast 50mm and 85mm, but adds to the vintage character rather than detracting. Bokeh is generally swirly, with catโs-eye shapes toward the frame edges, giving motion shots a painterly quality.
Handling & Adaptability
The original lenses were compact and lightโmost weighing between 200g and 500g. The TLS rehousing transforms them into robust, production-friendly tools while retaining their optical character. These lenses can be complimented by vintage zooms such as the Cooke Varotal or Canon K35 zoom.
Image Circle
Full frame coverage with a 44mm image circle and LPL mount. The rehousing process completely preserves the original optical designs and image circles, ensuring that the lenses maintain their unrepeatable look.
Cinematic Heritage
Canon entered the rangefinder market in the 1930s, but it wasnโt until the 1950s that its FD predecessors truly rivaled Leica and Nikon glass. The lenses were designed during a time when Japanese optical engineering was rapidly advancing, aiming to provide high-quality, affordable alternatives to German optics. Their rediscovery by filmmakers coincided with the rise of digital cinema, as an alternative to the clean, clinical look of modern primes. Like Canon K-35s, Rangefinder lenses now represent an important link between still and motion heritage, offering a vintage but not overly โdegradedโ look.
Blogs
Image Fidelity & Focus
Canon Rangefinder glass was designed with high-speed apertures, compact forms, and excellent sharpness for its era. Wide open, contrast is gentle, with a pleasing falloff into the edges, giving images a soft yet dimensional rendering. Sharpness is good in the center but rolls off smoothly toward the edges, which modern cinematographers often favor for subject isolation. Stopped down, these lenses sharpen considerably, producing a more neutral, clinical look. Image fidelity leans toward warmer tones, with subtle color shifts tending toward lower contrast and slightly cooler hues.
Handling & Adaptability
The original lenses were compact and lightโmost weighing between 200g and 500g. The TLS rehousing transforms them into robust, production-friendly tools while retaining their optical character. These lenses can be complimented by vintage zooms such as the Cooke Varotal or Canon K35 zoom.
Flare & Bokeh
The golden 1960โs single-layer coatings add to the distinctly organic skin tones, strong, expressive flares and lowered contrast when pointed at light sources. Chromatic aberration is present wide open, particularly in the fast 50mm and 85mm, but adds to the vintage character rather than detracting. Bokeh is generally swirly, with catโs-eye shapes toward the frame edges, giving motion shots a painterly quality.
Image Circle
Full frame coverage with a 44mm image circle and LPL mount. The rehousing process completely preserves the original optical designs and image circles, ensuring that the lenses maintain their unrepeatable look.
Cinematic Heritage
Canon entered the rangefinder market in the 1930s, but it wasnโt until the 1950s that its FD predecessors truly rivaled Leica and Nikon glass. The lenses were designed during a time when Japanese optical engineering was rapidly advancing, aiming to provide high-quality, affordable alternatives to German optics. Their rediscovery by filmmakers coincided with the rise of digital cinema, as an alternative to the clean, clinical look of modern primes. Like Canon K-35s, Rangefinder lenses now represent an important link between still and motion heritage, offering a vintage but not overly โdegradedโ look.
Technical Specs Table
T-Stop
Type
Format
Front Diameter
Lens Mount
Metadata
Close Focus (ft)
Close Focus (m)
Weight (lbs)
Weight (kg)
Length (in)
Length (mm)
Iris Blades
Image Circle
Front Filter
Rear Filter
Horizontal Angle of View (Full Frame)
Horizontal Angle of View (S35)
Focus Rotation
T4.0
Spherical
Full Frame LF/VV
110 mm
LPL
โ
8"
0.20 m
2.60 lbs
1.18 kg
โ
โ
16
44 mm
โ
โ
โ
โ
300ยฐ
T1.8
Spherical
Full Frame LF/VV
110 mm
LPL
โ
8"
0.20 m
2.68 lbs
1.20 kg
2.74"
69.60 mm
16
44 mm
โ
โ
โ
โ
300ยฐ
T2.1
Spherical
Full Frame LF/VV
110 mm
LPL
โ
8"
0.20 m
2.68 lbs
1.20 kg
2.74"
69.60 mm
16
44 mm
โ
โ
โ
โ
300ยฐ
T1.6
Spherical
Full Frame LF/VV
110 mm
LPL
โ
12"
0.30 m
2.00 lbs
0.91 kg
2.31"
58.60 mm
16
44 mm
โ
โ
โ
โ
300ยฐ
T1.8
Spherical
Full Frame LF/VV
110 mm
LPL
โ
11"
0.28 m
1.95 lbs
0.88 kg
2.62"
66.60 mm
16
44 mm
โ
โ
โ
โ
300ยฐ
T1.1
Spherical
Full Frame LF/VV
110 mm
LPL
โ
16"
0.40 m
2.25 lbs
1.02 kg
2.62"
66.60 mm
16
44 mm
โ
โ
โ
โ
300ยฐ
T1.4
Spherical
Full Frame LF/VV
110 mm
LPL
โ
19"
0.48 m
2.10 lbs
0.95 kg
2.62"
66.60 mm
16
44 mm
โ
โ
โ
โ
300ยฐ
T1.6
Spherical
Full Frame LF/VV
110 mm
LPL
โ
2'2"
0.66 m
3.34 lbs
1.50 kg
3.41"
86.60 mm
16
44 mm
โ
โ
โ
โ
300ยฐ
T2.1
Spherical
Full Frame LF/VV
110 mm
LPL
โ
2'2"
0.66 m
3.44 lbs
1.56 kg
4.00"
101.60 mm
16
44 mm
โ
โ
โ
โ
300ยฐ
T2.8
Spherical
Full Frame LF/VV
110 mm
LPL
โ
3'6"
1.07 m
3.58 lbs
1.62 kg
4.68"
118.80 mm
16
44 mm
โ
โ
โ
โ
300ยฐ
Blogs
Links & Downloads
PROJECTS
Army of Dead (2021)
Director: Zach Snyder
DP: Zach Snyder
Lenses: TLS Canon Rangefinder
Cooper's Treasure (TV Series) (2017)
Director: Phil Lott, Ari Mark
DP: Steve Purcell
Lenses: TLS Canon Rangefinder
Craig Fergusonโs Hobo Fabulous (TV Series) (2019)
DP: Tobias Deml
Lenses: TLS Canon Rangefinder
LENS TESTS
Professional Cinema Lens Service You Can Trust
Our in-house, manufacturer-certified lens technicians provide precise inspection, calibration, and repair for cinema lenses. Contact us to schedule your lenses for service.
Products you may like
Canon Sumire Prime
Full Frame LF/VV | Spherical
Atlas Orion Anamorphics
Super 35 | Anamorphic
Atlas Mercury Lenses
Full Frame LF/VV | Anamorphic
Aria Impressionism / Master Anamorphic Full Frame
Full Frame LF/VV | Anamorphic

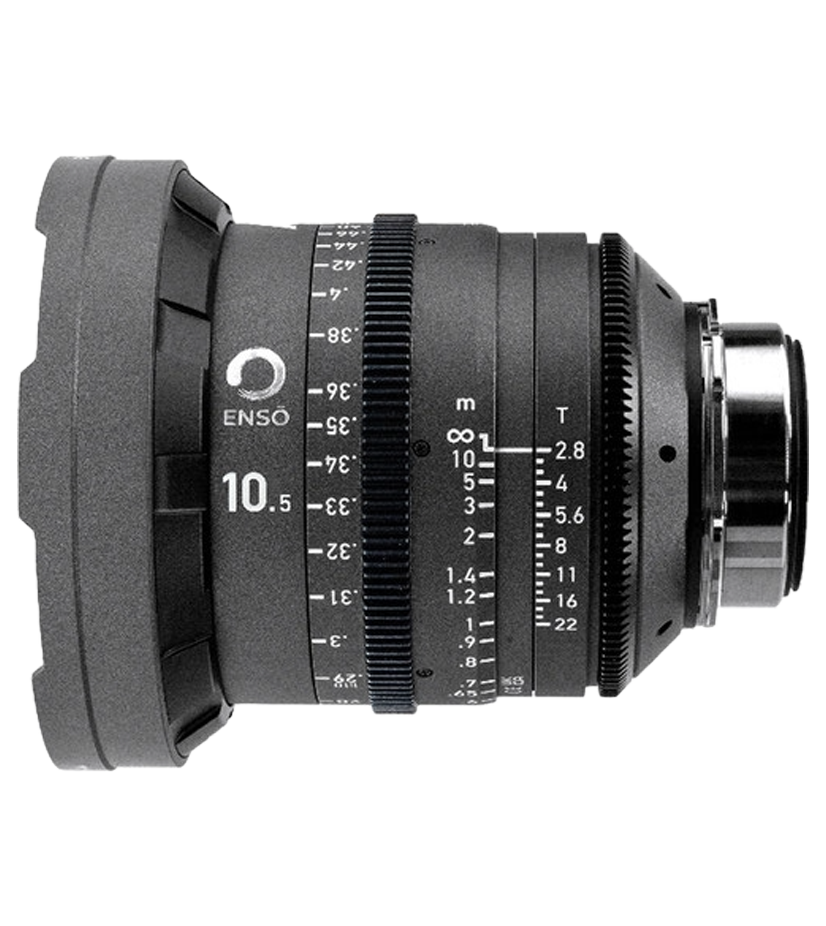

ARRI Ensล Primes
