Set Includes

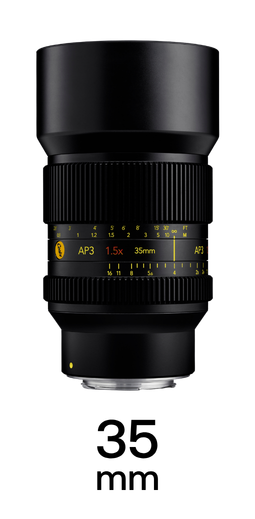

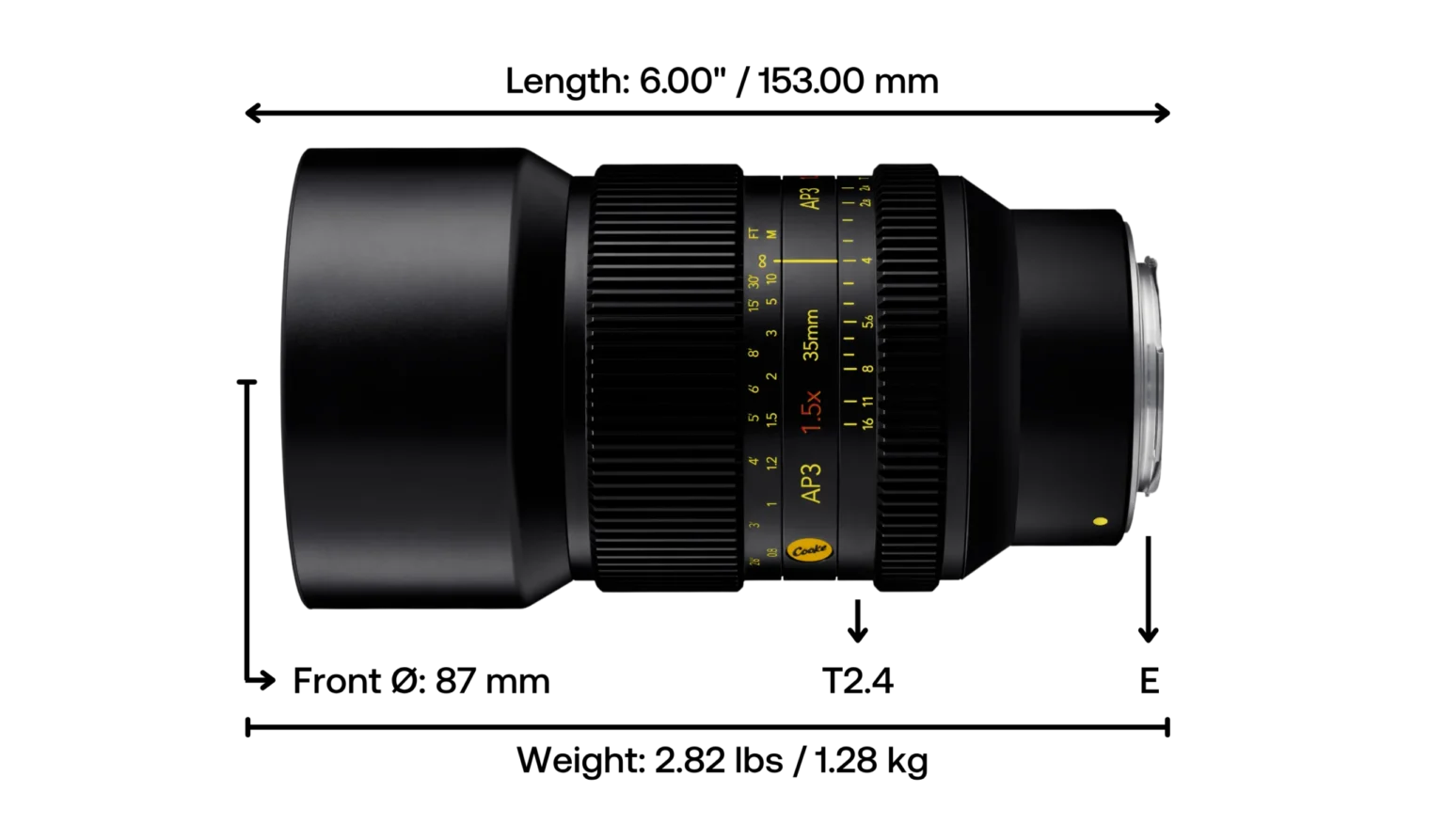

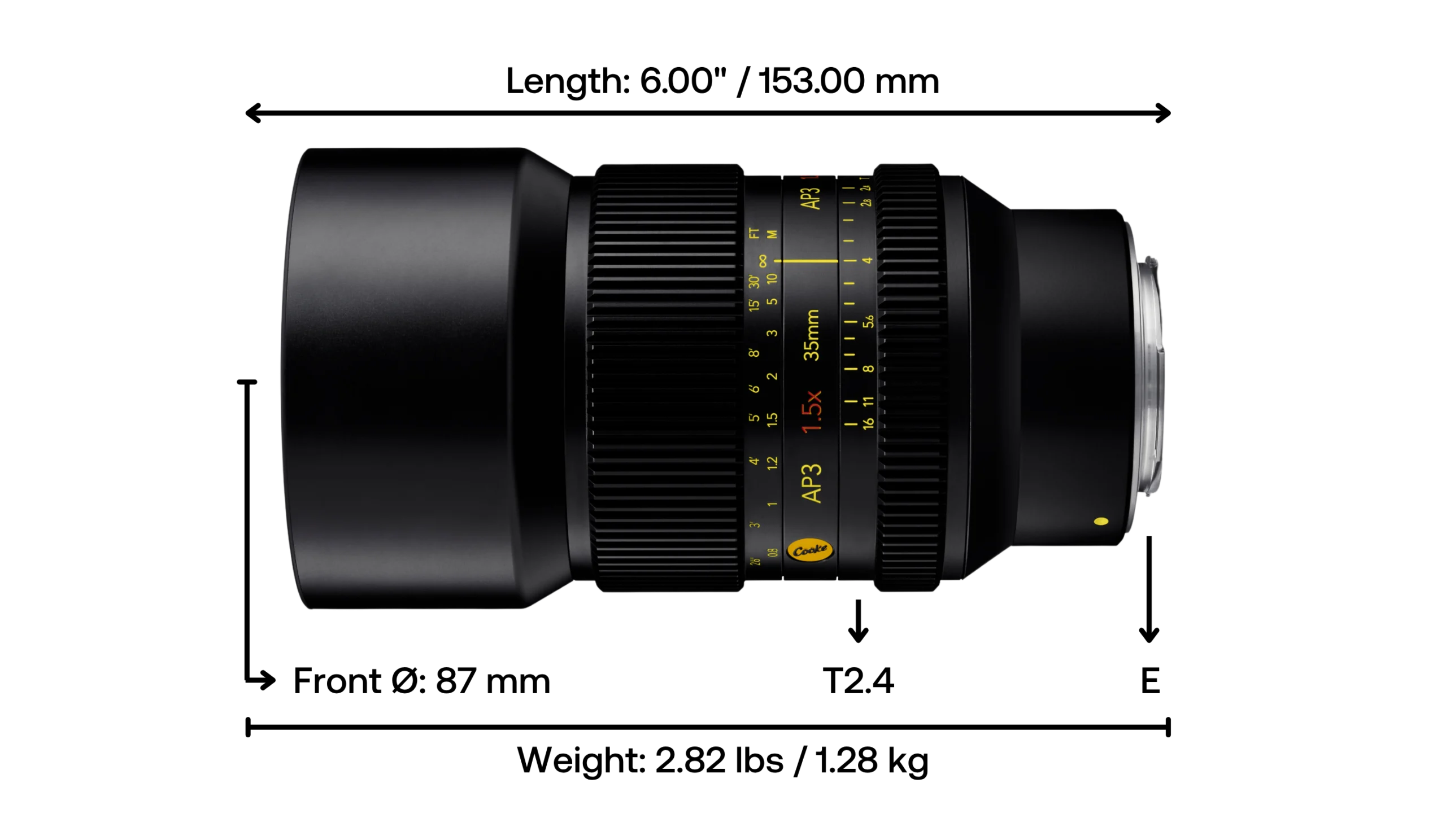

- Cooke AP3 35mm T2.4

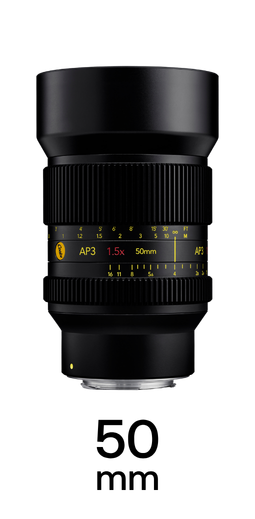

- Cooke AP3 50mm T2.4

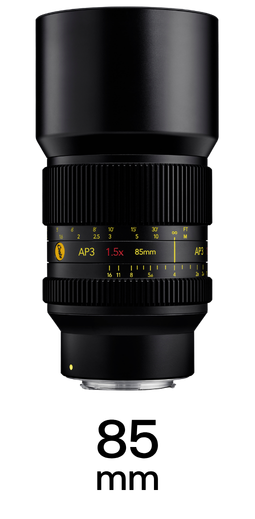

- Cooke AP3 85mm T2.4
Matching Items
Cooke AP3
Prime - 1.5x Anamorphic - Full Frame
product details
Cine Visuals rents the Cooke AP3 1.5x anamorphic Full Frame prime set from Los Angeles. The set includes the 35mm, 50mm, and 85mm, all at T2.4. Available for rental or sub-rental worldwide, with daily and weekly rental quotes available on request. Each lens is inspected and calibrated in-house before rental.
Set Includes
- Cooke AP3 35mm T2.4
- Cooke AP3 50mm T2.4
- Cooke AP3 85mm T2.4
| Type | - |
| Format | - |
| Lens Mount | - |
| Iris Blades | - |
| Metadata | - |
| Per Focal Length | |
| Focal Length | - |
| T-Stop | - |
| Close Focus | - |
| Front Diameter | - |
| Weight | - |
| Length | - |
| Era / Generation | |
| Contrast & Tonal Character | |
| Sharpness & Resolution | |
| Focus Fall-Off / Transition | |
| Iris & Bokeh Quality | |
| Flare & Highlight Behavior | |
| Handling & Ergonomics | |
| Build & Modifications | |
| Cinematic Heritage & Credits |
*Refer to the Technical Specifications table
Lens Type:
Anamorphic Cinema Lenses
|
Full Frame Cinema Lenses
Matching Items
Matching Items
Blogs
About the Cooke AP3 Cinema Lenses
Cooke AP3 anamorphic primes are compact Full Frame 1.5x lenses designed for modern mirrorless camera systems. The set includes 35mm, 50mm, and 85mm focal lengths, all at T2.4, with colour-balanced optics, a shared 87mm front diameter, and aligned focus and iris mechanics across the set.
The AP3 series brings Cookeโs anamorphic image character into a smaller, more practical lens package than traditional large-format anamorphic systems. With lightweight housings, interchangeable E, RF, L, and M mount support, and Full Frame coverage with Super 35 compatibility, the set is well suited for productions that want Cooke anamorphic rendering in a compact, modern workflow.
ย
ย
Image Fidelity & Focus
AP3 delivers strong central image structure wide open at T2.4, consistent across all three focal lengths. Cooke's optical approach prioritises clarity and controlled anamorphic rendering together: defined where precision matters, with natural highlight behaviour and smooth defocus transitions. All three lenses share a 160-degree focus rotation with dual imperial and metric scales and a non-linear focus movement designed for accurate, smooth travel. Colour balance is matched across the set.
Handling & Adaptability
Ranging from 1.2 to 1.4kg depending on focal length, the AP3 lenses are compact and lightweight for Full Frame anamorphics, with an ergonomic design finished in a tough anodised shell suited to handheld and documentary-style setups. Cooke's AP3 platform supports interchangeable E, RF, L, and M mounts. The shared architecture across the set, including matched focus and iris gear positions, a common 87mm front diameter, standard 0.8 MOD drive gears, and a shared filter thread of M82 x 0.75, keeps motor setups consistent and lens changes fast throughout a shooting day.
Flare & Bokeh
AP3's flares are organic responses to light rather than manufactured effects, carrying a classic anamorphic tint that Cooke describes as consistent and workable across a wide range of conditions. Cooke positions the AP3 as a balanced anamorphic system: the flare character is present and identifiable without being extreme or difficult to control in practical use. Out-of-focus rendering is smooth and gradual, with oval bokeh that carries a painterly, impressionistic quality that Cooke says remains consistent across the full T-stop range and across all three focal lengths.
Image Circle
The AP3 set covers Full Frame and is Super 35 compatible. At 1.5x anamorphic, it delivers the field-of-view compression, oval bokeh, and horizontal flare characteristics associated with anamorphic imaging while integrating cleanly into current Full Frame and Super 35 workflows. Cooke notes the 1.5x squeeze factor suits modern mirrorless sensors with minimal cropping, which keeps the acquisition workflow efficient without sacrificing the core anamorphic image qualities.
Cinematic Heritage
Cooke has been a central name in cinema optics for over a century, spanning British studio production, Hollywood feature work, and the transition to digital cinematography. The AP3 draws on the same optical lineage as Cooke's broader anamorphic series, including the Anamorphic /i S35 2x and FF 1.8x primes, and shares hardware architecture and lens coatings with the SP3. Cooke describes the AP3 as bringing that optical pedigree into a compact format built for contemporary mirrorless production, as an addition to the Cooke lens family rather than a replacement for the larger Cooke anamorphic systems above it.
Technical Specs Table
T-Stop
Type
Format
Front Diameter
Lens Mount
Metadata
Close Focus (ft)
Close Focus (m)
Weight (lbs)
Weight (kg)
Length (in)
Length (mm)
Iris Blades
Image Circle
Front Filter
Rear Filter
Horizontal Angle of View (Full Frame)
Horizontal Angle of View (S35)
Focus Rotation
T2.4
Anamorphic
Full Frame LF/VV
87 mm
E
โ
19.7"
0.50 m
2.82 lbs
1.28 kg
6.00"
153.00 mm
9
43.3 mm
82 mm x 0.75
โ
85ยฐ
โ
160ยฐ
T2.4
Anamorphic
Full Frame LF/VV
87 mm
E
โ
23.6"
0.60 m
2.60 lbs
1.18 kg
5.60"
142.00 mm
9
43.3 mm
82 mm x 0.75
โ
64ยฐ
โ
160ยฐ
T2.4
Anamorphic
Full Frame LF/VV
87 mm
E
โ
35.4"
0.90 m
3.11 lbs
1.41 kg
6.30"
159.00 mm
9
43.3 mm
82 mm x 0.75
โ
39ยฐ
โ
160ยฐ
Links & Downloads
PROJECTS SHOT WITH
Cooke AP3
LENS TESTS
Professional Cinema Lens Service You Can Trust
Our in-house, manufacturer-certified lens technicians provide precise inspection, calibration, and repair for cinema lenses. Contact us to schedule your lenses for service.
