ARRI Zeiss Ultra Primes

ARRI_Zeiss_Ultra_PRIME_8R_DIMENSIONS-1-scaled

1 / 14

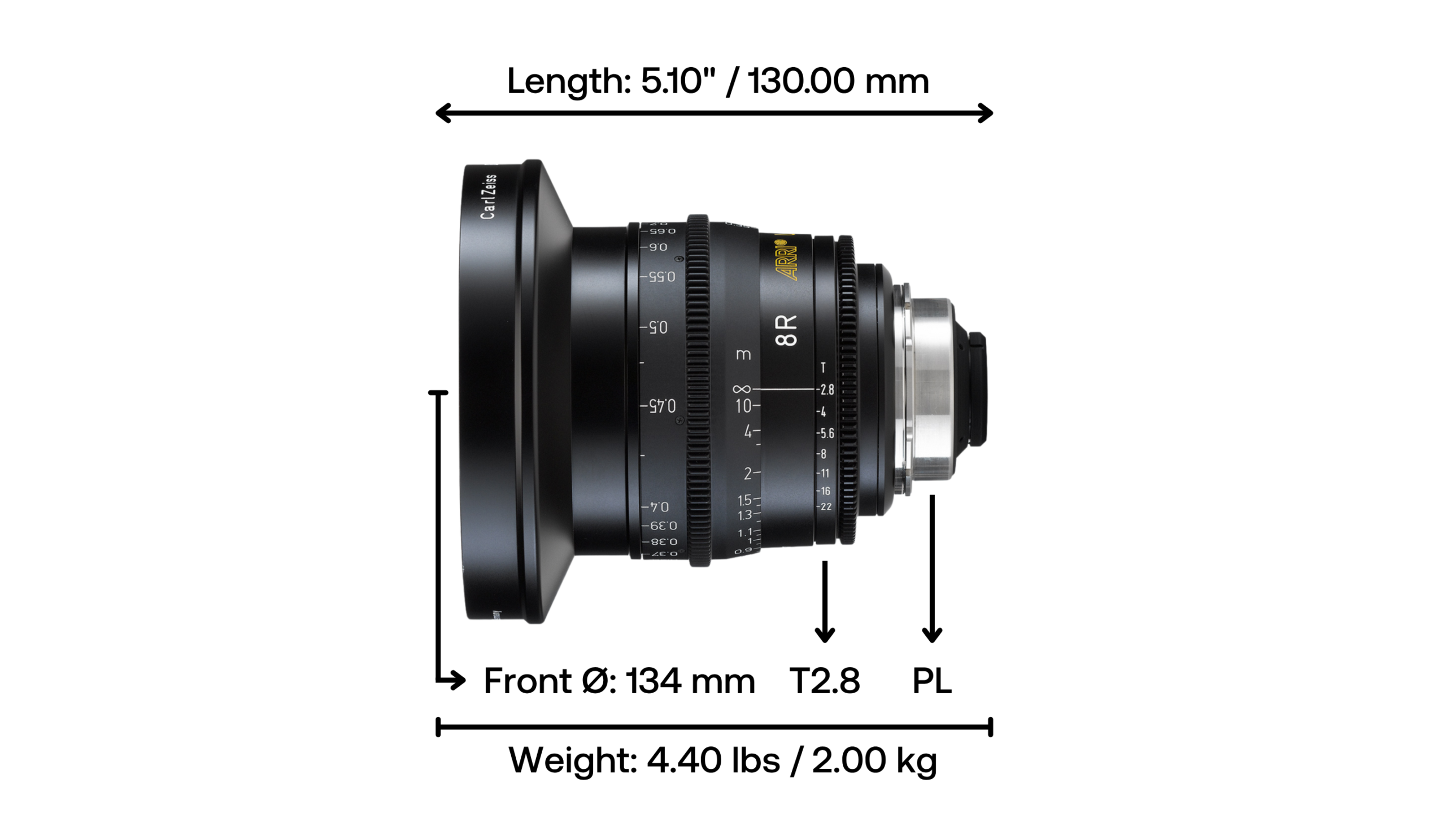

ARRI Zeiss Ultra Prime 8R 8mm T2.8
ARRI Zeiss Ultra Prime 12mm T2.0
ARRI Zeiss Ultra Prime 14mm T1.9
ARRI Zeiss Ultra Prime 16mm T1.9
ARRI Zeiss Ultra Prime 20mm T1.9
ARRI Zeiss Ultra Prime 24mm T1.9

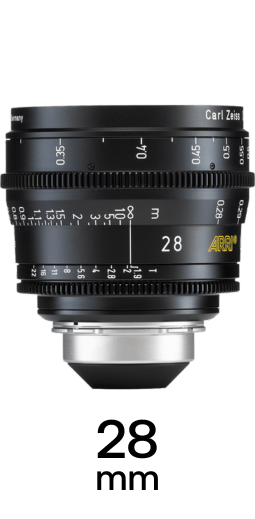

ARRI Zeiss Ultra Prime 28mm T1.9

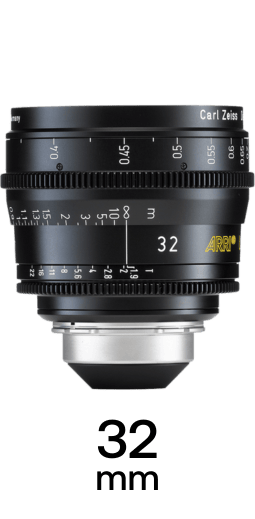

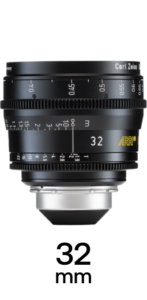

ARRI Zeiss Ultra Prime 32mm T1.9

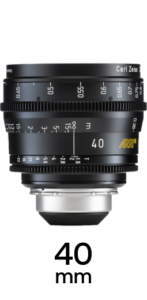

ARRI Zeiss Ultra Prime 40mm T1.9

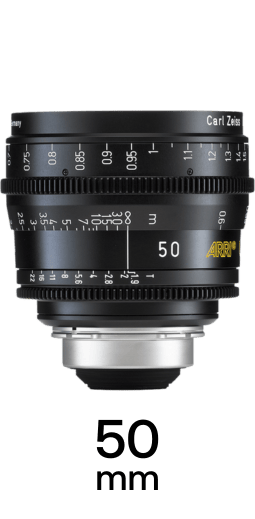

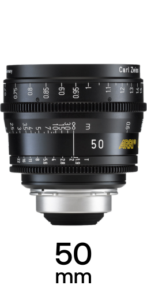

ARRI Zeiss Ultra Prime 50mm T1.9

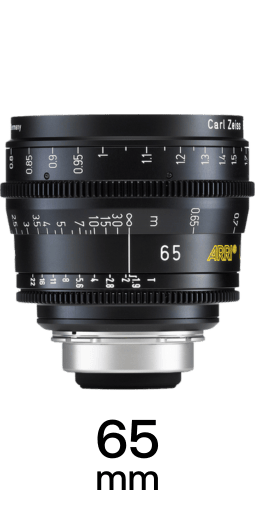

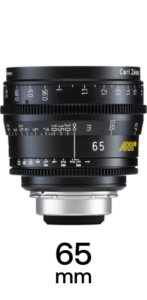

ARRI Zeiss Ultra Prime 65mm T1.9

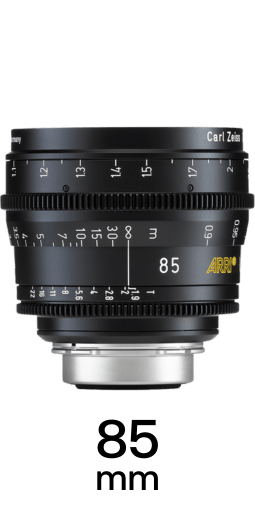

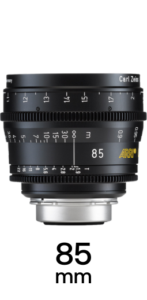

ARRI Zeiss Ultra Prime 85mm T1.9

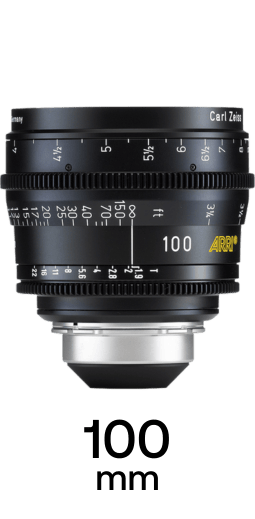

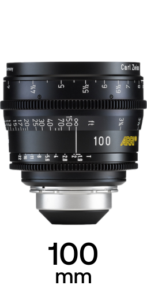

ARRI Zeiss Ultra Prime 100mm T1.9

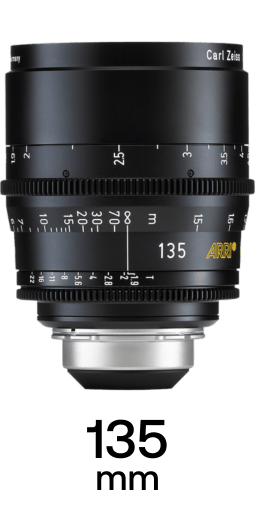

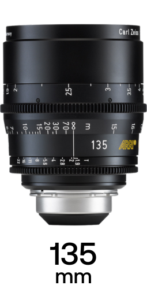

ARRI Zeiss Ultra Prime 135mm T1.9

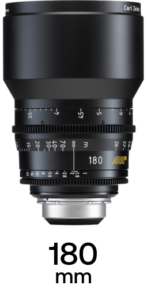

ARRI Zeiss Ultra Prime 180mm T1.9

Matching Items

ARRI Zeiss Ultra Primes

Prime - Spherical - Super 35

product details

The ARRI/Zeiss Ultra Prime LDS lenses are cinema primes that deliver sharp, high-contrast images with consistent color reproduction across the full set. Ultra Primes have been respected for decades as one of the most complete and versatile lens lines ever made for 35mm production. A set comprises an impressive 16 focal lengths, ranging from 8mm to 180mm, bringing unmatched flexibility. Not as soft or vintage as some other lens lines, ARRI/Zeiss Ultra Primes deliver clarity and consistency, which adds to their versatility. Their compact size, reliability, optical precision and durability have made them one of the most widely used cine lens families. Available for rental or sub-rental at Cine Visuals.

Focal Length
T-Stop
Type
Format
Front Diameter
Lens Mount
Metadata
Iris Blades
Image Circle

Era / Generation
Contrast & Tonal Character
Sharpness & Resolution
Focus Fall‑Off / Transition
Iris & Bokeh Quality
Flare & Highlight Behavior
Handling & Ergonomics
Build & Modifications
Cinematic Heritage & Credits

*Refer to Technical Specifications table. Not the same for all focal lengths.

Matching Items

Technical Specs Table

T-Stop

Type

Format

Front Diameter

Lens Mount

Metadata

Close Focus (ft)

Close Focus (m)

Weight (lbs)

Weight (kg)

Length (in)

Length (mm)

Iris Blades

Image Circle

Front Filter

Rear Filter

Horizontal Angle of View (Full Frame)

Horizontal Angle of View (S35)

Focus Rotation

T2.8

Spherical

Super 35

134 mm

LDS

1'2"

0.35 m

4.40 lbs

2.00 kg

5.10"

130.00 mm

31.1 mm

–

270°

T2.0

Spherical

Super 35

156 mm

LDS

12"

0.30 m

4.40 lbs

2.00 kg

5.50"

140.00 mm

31.1 mm

–

270°

T1.9

Spherical

Super 35

114 mm

LDS

0.22 m

4.00 lbs

1.80 kg

4.40"

112.00 mm

31.1 mm

–

270°

T1.9

Spherical

Super 35

95 mm

LDS

10"

0.25 m

2.60 lbs

1.20 kg

3.70"

94.00 mm

31.1 mm

–

270°

T1.9

Spherical

Super 35

95 mm

LDS

11"

0.28 m

2.60 lbs

1.20 kg

3.60"

91.60 mm

31.1 mm

–

270°

T1.9

Spherical

Super 35

95 mm

LDS

12"

0.30 m

2.20 lbs

1.00 kg

3.60"

91.60 mm

31.1 mm

–

270°

T1.9

Spherical

Super 35

95 mm

LDS

11"

0.28 m

2.20 lbs

1.00 kg

3.60"

91.60 mm

31.1 mm

–

270°

T1.9

Spherical

Super 35

95 mm

LDS

1'2"

0.35 m

2.40 lbs

1.10 kg

3.60"

91.60 mm

31.1 mm

–

270°

T1.9

Spherical

Super 35

95 mm

LDS

1'3"

0.38 m

2.20 lbs

1.00 kg

3.60"

91.60 mm

31.1 mm

–

270°

T1.9

Spherical

Super 35

95 mm

LDS

0.60 m

2.20 lbs

1.00 kg

3.60"

91.60 mm

31.1 mm

–

270°

T1.9

Spherical

Super 35

95 mm

LDS

2'3"

0.65 m

2.40 lbs

1.10 kg

3.60"

91.60 mm

31.1 mm

–

270°

T1.9

Spherical

Super 35

95 mm

LDS

0.90 m

2.60 lbs

1.20 kg

3.60"

91.60 mm

31.1 mm

–

270°

T1.9

Spherical

Super 35

95 mm

LDS

3'3"

1.00 m

2.60 lbs

1.20 kg

3.60"

91.60 mm

31.1 mm

–

270°

T1.9

Spherical

Super 35

95 mm

LDS

1.50 m

3.50 lbs

1.60 kg

4.70"

119.00 mm

31.1 mm

–

270°

T1.9

Spherical

Super 35

114 mm

LDS

8'6"

2.60 m

5.70 lbs

2.60 kg

6.50"

166.00 mm

31.1 mm

–

270°

ARRI Zeiss Ultra Primes

Image Fidelity & Focus

Optically, the Ultra Primes are known for their neutral color reproduction, strong contrast, and consistent image fidelity across the range, with minimal breathing, well-controlled distortion, and a pleasingly gentle roll-off. Focus rendering is sharp but not clinically harsh, with smooth falloff into defocus areas.

Handling & Adaptability

Ultra Prime LDS lenses are designed for consistency, including matched front diameters, uniform gear positions, and robust PL mounts, making them easy to swap quickly on set and compatible with all standard cinema accessories. Focus mechanics are highly refined, with long, smooth throws and virtually no breathing, enabling precise and repeatable focus pulls. Lens Data System (LDS) integration provides critical metadata directly to compatible ARRI cameras, streamlining VFX-heavy productions and on-set data capture.

Flare & Bokeh

Flare control is excellent thanks to Zeiss’s advanced coatings, producing clean, contrasty images and subtle highlights even in challenging lighting, while retaining the ability to yield subtle, cinematic veiling when pushed toward strong light sources. Ultra Primes produce bokeh that is neutral and unobtrusive, with rounded, out-of-focus highlights that avoid harsh edges, contributing to a balanced and natural look.

Image Circle

The image circle comfortably covers the Super 35 format. Ultra Primes do not cover full frame without cropping.

Cinematic Heritage

Introduced in the late 1990s and developed through the early 2000s, Ultra Primes became one of the most widely used cine lens systems worldwide, filling the gap between the faster, lower-light Zeiss Super Speeds and the larger, heavier Zeiss Master Primes. A cornerstone of modern cinema optics, Ultra Primes are valued for reliability, precision, and subtle character.
